LG Tribute HD Rear Camera Replacement

Geschrieben von: Aalia Mohammed
  • Kommentare: 0
LG Tribute HD Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will teach you how to properly repair or replace the rear camera in the LG Tribute HD LS676. The rear camera may need cleaning if the lens has been damaged by water, dirt or sand. There may also be connectivity issues to the motherboard which will require disconnecting and reconnecting the ribbon cable from the camera to the motherboard. However, if the rear lens is broken or damaged causing the camera not to turn on, then is has to be replaced.

  1. eIsbNCNVLSdZslXK
    eIsbNCNVLSdZslXK
    yDTKlCVt6XHFM16Y

    • Insert a fingernail, or plastic opening tool, into the cutout on the back cover and pry outward to remove.

  2. HoaUbftseQaebo1N
    HoaUbftseQaebo1N
    suTHEwFQ2wFKMuHt

    • Pull the battery out of the phone.

    • Remove the SD Card by sliding the card out as shown.

  3. wUAf5xRp4aNVmNws
    wUAf5xRp4aNVmNws
    x16wwQ4NhuPhFBEt

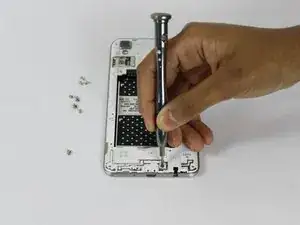

    • Remove the twelve 2mm JIS #00 screws from the mid-frame.

  4. rxlvQBVaDqQgXGAn
    rxlvQBVaDqQgXGAn
    sFIsQkOrXXTCwBmQ
    GyGWvjnoRjqQjQlZ

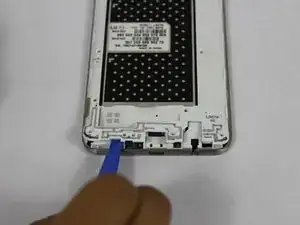

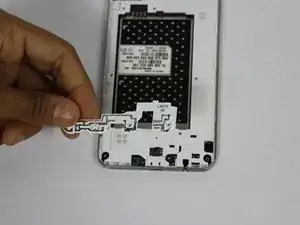

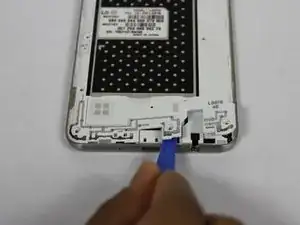

    • Using a plastic opening tool, remove the antenna extender from the mid-frame.

  5. G1t2aEvsMLUjU1lX
    G1t2aEvsMLUjU1lX
    cTHCZc1issMLnXSV

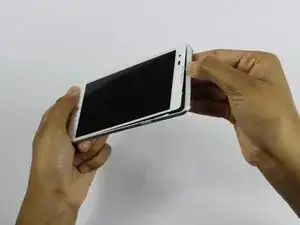

    • Using your fingers, remove the mid-frame.

  6. WLCaNOHa11p1ALfs
    WLCaNOHa11p1ALfs
    vx1bP2qTrhNlsqQu

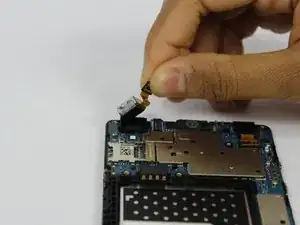

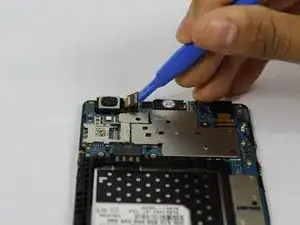

    • Use a plastic opening tool to disconnect the rear camera and pull from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
