LG Tribute HD Rear Speaker Replacement

Geschrieben von: Jerry Koenig
  • Kommentare: 0
LG Tribute HD Rear Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will teach you how to properly replace the rear facing speaker in the LG Tribute HD LS676

  1. eIsbNCNVLSdZslXK
    eIsbNCNVLSdZslXK
    yDTKlCVt6XHFM16Y

    • Insert a fingernail, or plastic opening tool, into the cutout on the back cover and pry outward to remove.

  2. HoaUbftseQaebo1N
    HoaUbftseQaebo1N
    suTHEwFQ2wFKMuHt

    • Pull the battery out of the phone.

    • Remove the SD Card by sliding the card out as shown.

  3. glusfgeLfg3xGKZJ
    glusfgeLfg3xGKZJ
    yXUuxfMgFShgPNxU

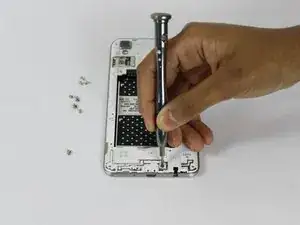

    • Remove the twelve 2mm JIS #00 screws from the mid-frame.

  4. 6CeEROfPn4eBEKro
    6CeEROfPn4eBEKro
    m4rTYJP5KjoWKs6U
    unLrXHSQBAvKVh26

    • Using a plastic opening tool, remove the antenna extender from the mid-frame.

  5. Z1d4L3idPWQHbddV
    Z1d4L3idPWQHbddV
    wE2jscMukPiiD6sD

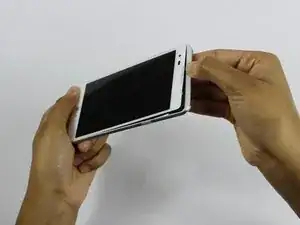

    • Using your fingers, remove the mid-frame.

  6. whrNJ4xBTclehSta

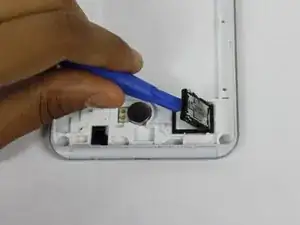

    • Using a plastic opening tool, pry the rear facing speaker from the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
