LG Tribute Motherboard Replacement

Geschrieben von: Aaron Amdall
  • Kommentare: 2
LG Tribute Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 - 30 Minuten

Einleitung

The motherboard is a circuit board that connects and controls the phone's components.

  1. nWxpqPZABHZUwueM
    nWxpqPZABHZUwueM
    JkMjvulTaQOOfEEu

    • Use the plastic opening tool to pry off the back cover.

  2. kgYnOto1tYbI3KqT

    • Lift the battery out of place.

    • When replacing the battery, the (+) and (-) symbols must match up with the phone's charging nodes.

  3. wBkjWPtTkZDEx5dZ
    wBkjWPtTkZDEx5dZ
    FlPXvqQnuEIHedeG

    • Remove eight 4mm screws using a Phillips head 000 screwdriver (PH000).

  4. PSnTCUqAuOIxLAfG
    PSnTCUqAuOIxLAfG
    sQDlwFLXJTejSppS

    • Use a plastic opening tool to loosen the tabs around the edge of the phone.

    • Inserting a thin piece of plastic will help prevent opened tabs from locking back into place.

    • This step can be frustrating, but requires patience. Avoid the temptation to pry the panel loose. Using excessive force may break the delicate tabs.

  5. AdDd6hkIl2WKL4eL

    • Use a plastic opening tool to disconnect the touchscreen from the motherboard.

    • The motherboard will be completely free from the front panel after this step.

  6. 3YXIxEAOEioPiqg6
    3YXIxEAOEioPiqg6
    Yd4l2jnOAJOFqjMT
    wYqkX6YQEYAbOPgU

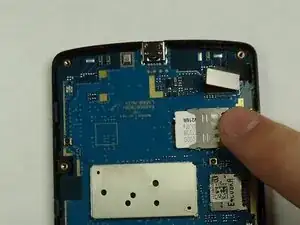

    • Remove SIM card by sliding it out of its housing.

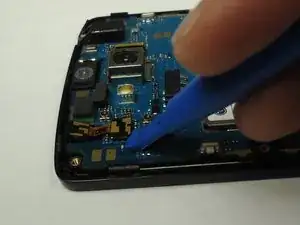

    • Remove the front-facing camera using a plastic opening tool.

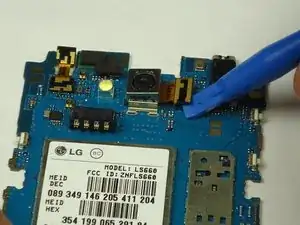

    • Remove rear-facing camera using a plastic opening tool.

    • Connect these three components to the new motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
