LG Tribute Rear-Facing Camera Replacement

Geschrieben von: Gustav Wolter
  • Kommentare: 0
LG Tribute Rear-Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

The rear facing camera on the LG Tribute is a fairly simple component to replace. The phone takes only a couple minutes to break down, and the camera can be replaced without any soldering.

  1. nWxpqPZABHZUwueM
    nWxpqPZABHZUwueM
    JkMjvulTaQOOfEEu

    • Use the plastic opening tool to pry off the back cover.

  2. kgYnOto1tYbI3KqT

    • Lift the battery out of place.

    • When replacing the battery, the (+) and (-) symbols must match up with the phone's charging nodes.

  3. wBkjWPtTkZDEx5dZ
    wBkjWPtTkZDEx5dZ
    FlPXvqQnuEIHedeG

    • Remove eight 4mm screws using a Phillips head 000 screwdriver (PH000).

  4. PSnTCUqAuOIxLAfG
    PSnTCUqAuOIxLAfG
    sQDlwFLXJTejSppS

    • Use a plastic opening tool to loosen the tabs around the edge of the phone.

    • Inserting a thin piece of plastic will help prevent opened tabs from locking back into place.

    • This step can be frustrating, but requires patience. Avoid the temptation to pry the panel loose. Using excessive force may break the delicate tabs.

  5. uespLNBuUVXeiMmo
    uespLNBuUVXeiMmo
    PDiAC545dE63FPuy

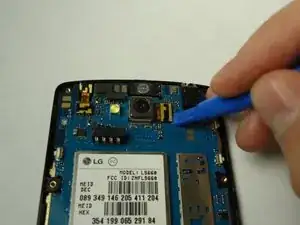

    • Disconnect the rear facing camera from the motherboard using a plastic opening tool.

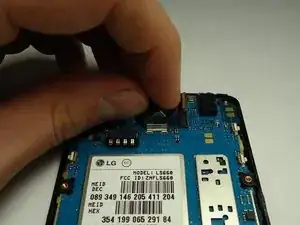

    • Lift the rear facing camera out of its housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
