Einleitung
Shutdown the LG V10 before replacing any component. If your music or other audio emitted from the phone's loudspeaker is distorted but is completely fine when listened through headphones/earphones, then the phone’s loudspeaker may need to be replaced.
Werkzeuge
-
-
Wedge the flat end of the plastic spudger, or the tip of your finger, in between the back cover and the LG V10’s charging port.
-
Carefully lift up on the spudger or with your finger so that the back cover pops up. The rest of the back cover should easily come off by sliding a finger or spudger under the back cover and around the sides.
-
-
-
There’s an impression next to the battery for the user to use their finger to pry the battery out; pry the battery out using your finger or the flat end of the spudger.
-
-
-

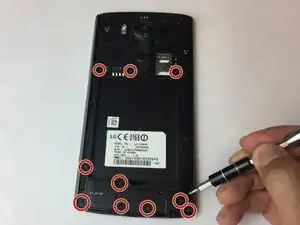

Using a screwdriver with a J000 Phillips bit, remove the ten 3.175 mm screws.
-

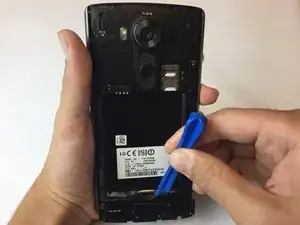

Using a plastic opening tool, pry part of the panel up starting from the sides of the battery slot.
-
-
-

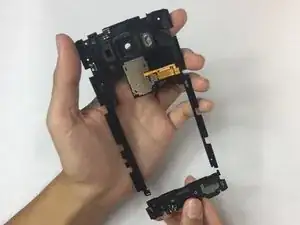

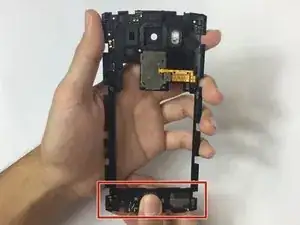

Carefully but firmly pull on the loudspeaker component to release it from the plastic bits holding it in place.
-
After replacing the loudspeaker, follow these instructions in reverse order to reassemble the LG V10.
