LG V20 Headphone Jack Replacement

Geschrieben von: Dominik Schnabelrauch
  • Kommentare: 7
LG V20 Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

16

Zeitaufwand

30 Minuten

Einleitung

Use this guide to replace the headphone jack in your LG V20.

  1. nH4NFSZZIeOUBmc1
    nH4NFSZZIeOUBmc1
    s2uASsAIfJIsIQWd
    eGZpwIAZIFmWOMGc

    • Press the button on the lower right side of the LG V20 to open the clamp that holds the back cover on the back side of the phone.

    • Remove the back cover.

  2. ZQlO1IMinXvMIEZa
    ZQlO1IMinXvMIEZa
    wuncXYEZLCveuqBj
    Mi15eMpjrStNXhF2

    • Before disassembling your phone, discharge the battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

    • Insert a spudger or your fingernail under the battery at the small recess on the lower edge.

    • Be careful not to deform or puncture the battery.

    • Pry up and remove the battery.

  3. 4KBAuYni61Gc2yA5

    • Remove the sixteen 4mm Phillips #00 screws attaching the back cover to the motherboard.

  4. by6dHd1Nie5hky4R
    by6dHd1Nie5hky4R
    xoeMIkVRiUiSeSjG

    • The top and bottom frame section hold very tight to the mid frame. It is possible to pull them off with your hands. If you're not able to do so, use the following removal procedure:

    • Use the flat end of a spudger and apply pressure to one of the corners of the frame section until you create a small gap.

  5. nDEYskHme61q2vyh
    nDEYskHme61q2vyh
    fEGfGatSHMYeIenO

    • Flip the phone and insert an opening pick in the gap you created.

    • Slide the opening pick along the gap until the frame section pops out of its plastic clamps.

    People on Reddit are reporting that the V20's antennas are contained in this top piece, and removing it too forcefully can damage the 2G antenna's contacts, resulting in a loss of ability to make calls. Details and a suggested fix if this happens to you:

    https://old.reddit.com/r/lgv20/comments/...

    databasebloat -

  6. ett21TB5tSbRqoYS

    • Remove the frame section.

    • Repeat this procedure with the frame section on the other end of the phone.

    • Within the top frame section there's a small silver grating that covers the speaker. This may fall out, so be careful not to lose it.

  7. 3FyxZyOIpbGSBAYc
    3FyxZyOIpbGSBAYc
    fZGJGGYEym3VbY5T

    • The loudspeaker is attached to the cover of the motherboard. Use an opening pick to pry it up.

    Be very careful with prying up the speaker or else it will break the connection to the cover.

    Peter Halenbeck -

  8. ALOKdOsCQEucJy5Q
    ALOKdOsCQEucJy5Q
    bgGC3QfLxnMFFwTU

    • The cover of the motherboard is held in its place by several plastic clamps.

    • Use an opening pick to pry up the motherboard cover at the right corner at the bottom of your phone until it pops out of the plastic clamp.

    Bonjour, en placant le médiator à l’intérieur de l’emplacement de la batterie le démontage est plus facile de l’intérieur vers l’extérieur…

    pat pat -

    Merci pour l’info!

    Nicolas Pierret -

  9. weYXMofX6tML5aqo
    weYXMofX6tML5aqo
    wIaPVpVThbTfIy5v

    • Slide the opening pick along the mid frame and flip it sideways to open the plastic clamps holding the motherboard cover in its place.

  10. cycSqxU1sP14DiSX

    • Remove the motherboard cover.

  11. uFeMWSjbkDjxIIqS
    uFeMWSjbkDjxIIqS
    uKGhHLipMMd2tCF5

    • Use the flat end of a spudger to disconnect the front camera flex cable.

    • If you want to go on and remove the motherboard assembly, there is no need to remove the front facing camera after disconnecting it. However if you feel uncertain, carefully remove it with a pair of tweezers.

    • Use a pair of tweezers to carefully remove the front facing camera. Be careful to only grip the body of the camera, as the top is the sensor pcb and is only held on with glue (removal will ruin the sensor).

  12. R4PKyjqfwaWGQG5R

    • Use the flat end of a spudger to disconnect the flex cable of the left rear camera.

    • The second rear camera will come out with the motherboard since it is connected on the other side.

    • You can leave the front facing camera in its place as long as you're careful while removing the motherboard assembly. However if you feel uncertain, carefully remove it with a pair of tweezers.

    Anyone have a picture of the back of the board by the charge port

    DANIEL HOCH -

  13. Z3j6kXEAZBOEWbFW

    • Disconnect the display flex cable with the flat end of a spudger.

  14. 5yWwZOh5Bk6gDs2G
    5yWwZOh5Bk6gDs2G
    RKyRBoQvqBMotr2B

    • Use the pointed end of a spudger to lift up the motherboard assembly until you can get a good grip.

    • Carefully lift up the motherboard assembly and remove it.

    Be very careful handling motherboard. The numerous spring-type contact points can be easily bent.

    Peter Halenbeck -

  15. 2qpVFohXMFoY6UyU

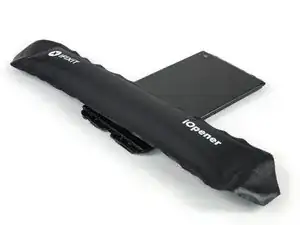

    • Use an iOpener to loosen the adhesive beneath the headphone jack and its flex cable.

  16. twgNLDNjEH2UNtNN
    twgNLDNjEH2UNtNN
    PWvSUSPFaZU5cMmW

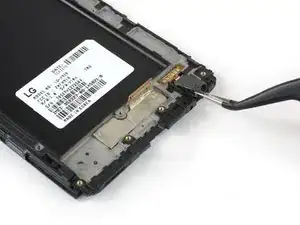

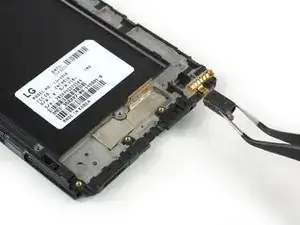

    • Use a pair of tweezers and gently remove the headphone jack by slowly pulling it up and out of its recess.

    • If the flex cable is glued in too tight, you might need to reapply the iOpener to soften the adhesive even more.

Abschluss

To reassemble your device, follow these instructions in reverse order. Apply new adhesive where it’s necessary.
