LG V20 Loudspeaker Replacement

Geschrieben von: Elliot Rockett
  • Kommentare: 8
LG V20 Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

Are you tired of your LG V20 plying music that sounds distorted or is barely audible? The main speaker may be disconnected or damaged and require replacement. This guide will explain the steps needed to replace the speaker.

  1. ZQlO1IMinXvMIEZa
    ZQlO1IMinXvMIEZa
    wuncXYEZLCveuqBj
    Mi15eMpjrStNXhF2

    • Before disassembling your phone, discharge the battery below 25%. A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

    • Insert a spudger or your fingernail under the battery at the small recess on the lower edge.

    • Be careful not to deform or puncture the battery.

    • Pry up and remove the battery.

  2. 4KBAuYni61Gc2yA5

    • Remove the sixteen 4mm Phillips #00 screws attaching the back cover to the motherboard.

  3. by6dHd1Nie5hky4R
    by6dHd1Nie5hky4R
    xoeMIkVRiUiSeSjG

    • The top and bottom frame section hold very tight to the mid frame. It is possible to pull them off with your hands. If you're not able to do so, use the following removal procedure:

    • Use the flat end of a spudger and apply pressure to one of the corners of the frame section until you create a small gap.

  4. nDEYskHme61q2vyh
    nDEYskHme61q2vyh
    fEGfGatSHMYeIenO

    • Flip the phone and insert an opening pick in the gap you created.

    • Slide the opening pick along the gap until the frame section pops out of its plastic clamps.

    People on Reddit are reporting that the V20's antennas are contained in this top piece, and removing it too forcefully can damage the 2G antenna's contacts, resulting in a loss of ability to make calls. Details and a suggested fix if this happens to you:

    https://old.reddit.com/r/lgv20/comments/...

    databasebloat -

  5. ett21TB5tSbRqoYS

    • Remove the frame section.

    • Repeat this procedure with the frame section on the other end of the phone.

    • Within the top frame section there's a small silver grating that covers the speaker. This may fall out, so be careful not to lose it.

  6. 3FyxZyOIpbGSBAYc
    3FyxZyOIpbGSBAYc
    fZGJGGYEym3VbY5T

    • The loudspeaker is attached to the cover of the motherboard. Use an opening pick to pry it up.

    Be very careful with prying up the speaker or else it will break the connection to the cover.

    Peter Halenbeck -

  7. ALOKdOsCQEucJy5Q
    ALOKdOsCQEucJy5Q
    bgGC3QfLxnMFFwTU

    • The cover of the motherboard is held in its place by several plastic clamps.

    • Use an opening pick to pry up the motherboard cover at the right corner at the bottom of your phone until it pops out of the plastic clamp.

    Bonjour, en placant le médiator à l’intérieur de l’emplacement de la batterie le démontage est plus facile de l’intérieur vers l’extérieur…

    pat pat -

    Merci pour l’info!

    Nicolas Pierret -

  8. weYXMofX6tML5aqo
    weYXMofX6tML5aqo
    wIaPVpVThbTfIy5v

    • Slide the opening pick along the mid frame and flip it sideways to open the plastic clamps holding the motherboard cover in its place.

  9. cycSqxU1sP14DiSX

    • Remove the motherboard cover.

  10. GXohqEYgWFnRgPlE
    GXohqEYgWFnRgPlE
    ja1wsmMrONcuComs

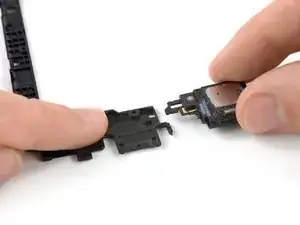

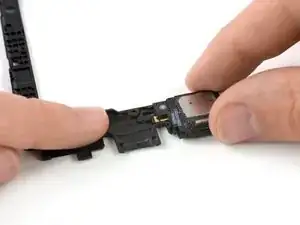

    • The loudspeaker is attached to the cover of the motherboard by a tight plastic clamp.

    • Flip the motherboard cover and pull the loudspeaker out of the plastic clamp at the lower end of it. Take care not to break the clamp.

Abschluss

To reassemble your device, follow these instructions in reverse order.
