LG VX5300 Keypad Replacement

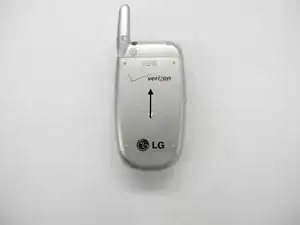

Carefully slide battery cover off in a downward direction.

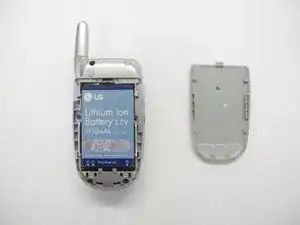

Using the plastic opening tool, remove the battery. Light force may be necessary.

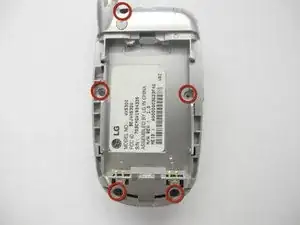

Using a Phillips #0 screwdriver, remove the five screws from the back cover and carefully set them aside.

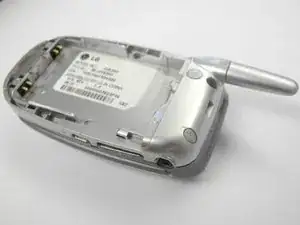

Using the plastic opening tool, carefully lift the back cover off.

Look to the following photo for the location of the two sensor bars.

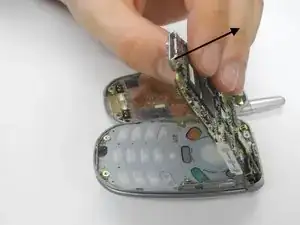

Without disconnecting the orange wire, carefully flip the computer chip over and lay flat on the table, exposing the keypad.

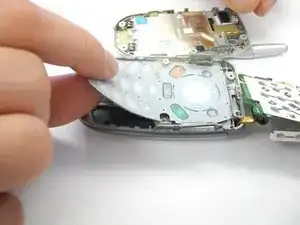

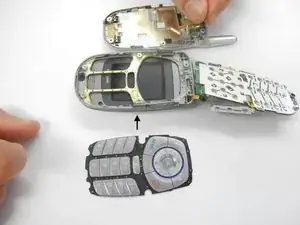

Carefully remove the keypad and replace with the new keypad.

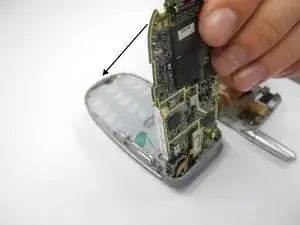

Carefully set the computer chip back in place.

Place the back cover back on and secure it with the screws.

Insert the battery.

Slide the back cover on the phone.
