Einleitung
If no sound comes from headphones that are plugged into the audio port, you may need to install a new one. Follow this guide to diagnose and resolve the issue.
-
-
Remove the battery cover by placing your thumb on the small ridge near the top of the phone back and push downward, exposing the battery.
-

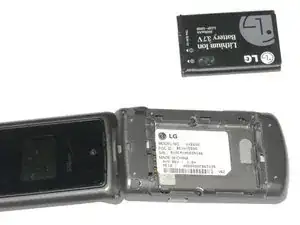

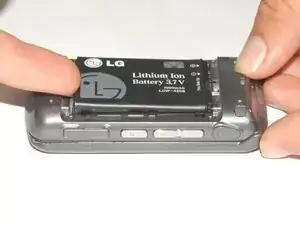

Remove the battery using your finger to pry it out of the battery housing.
-
-
-

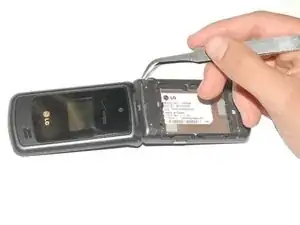

Remove the (2) rubber screw covers located near the hinge of the phone using tweezers or a thumb tack.
-

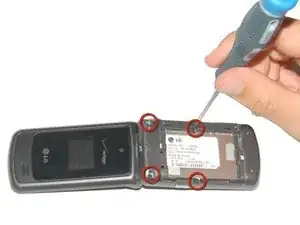

Unscrew the (4) 3.6mm screws using a #00 Phillip's head screw driver.
-
-
-
Carefully pry off the phone's backing using a plastic opening tool.
-

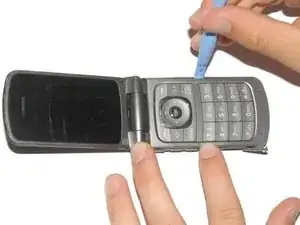

Slip the tool into the crack between the keypad (front panel) and the back panel.
-

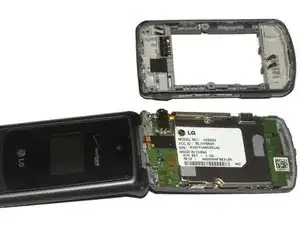

Slide the tool along the sides of the phone to detach the tabs holding the backing on.
-
-
-

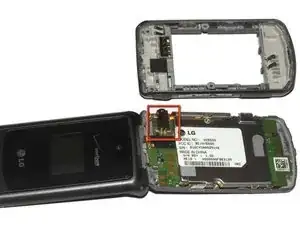

Locate the audio port; this is what it should look like.
-

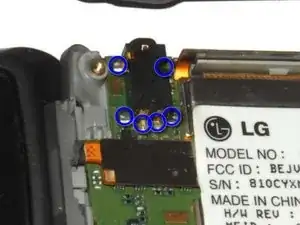

The audio port is mounted and connected at 6 points. Check the integrity of these connections.
-
To reassemble your device, follow these instructions in reverse order.
