The following guide will show the complete tear down of the phone in order to replace the internal phone casing.
-
-
Remove the battery cover by placing your thumb on the small ridge near the top of the phone back and push downward, exposing the battery.
-
Remove the battery using your finger to pry it out of the battery housing.
-
-
-

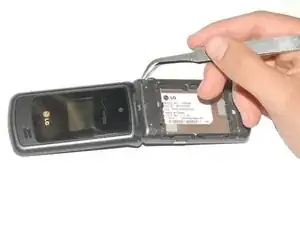

Remove the (2) rubber screw covers located near the hinge of the phone using tweezers or a thumb tack.
-

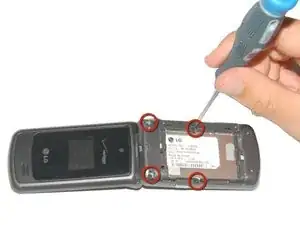

Unscrew the (4) 3.6mm screws using a #00 Phillip's head screw driver.
-
-
-
Carefully pry off the phone's backing using a plastic opening tool.
-

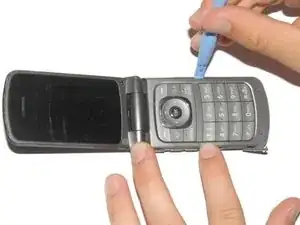

Slip the tool into the crack between the keypad (front panel) and the back panel.
-
Slide the tool along the sides of the phone to detach the tabs holding the backing on.
-
-
-

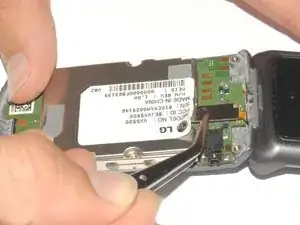

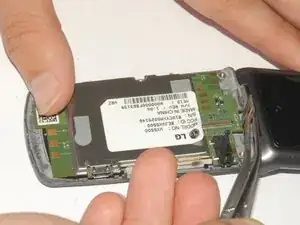

Peel back the sticker with tweezers and hold it back with your finger.
-
Use the tweezers to lift the display adapter off the logic board.
-
-
-

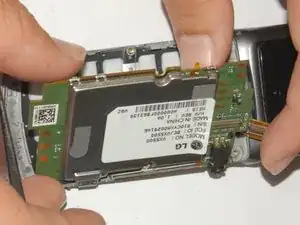

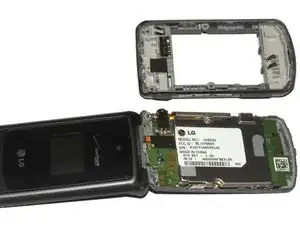

Lift the mother board out of the phone casing.
-

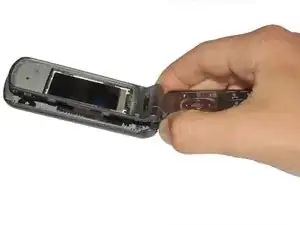

The keyboard can be easily removed once the mother board is out of the phone.
-
-
-

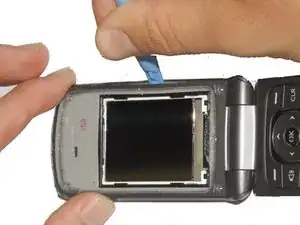

Carefully pry off the black plastic screen cover using the iSesamo tool or another thin, flat tool.
-
-
-

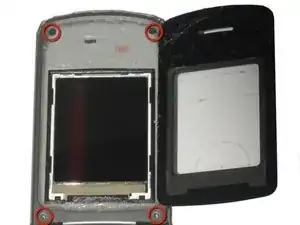

Unscrew the (4) 3.6mm screws near each corner of the phone's display panel by using a #00 Phillips head screwdriver.
-
-
-

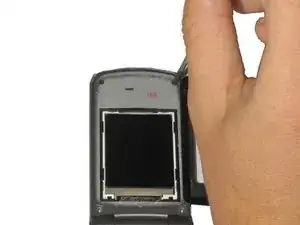

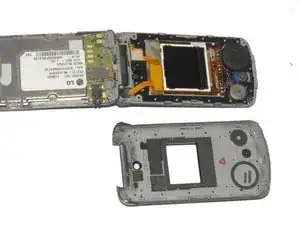

Pry off the front panel of the phone using a Plastic Opening Tool.
-

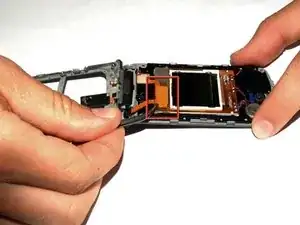

Push the tool into the crack along the side of the phone.
-
Slide the tool along the crack to detach the tabs holding the backing on the phone.
-
-
-

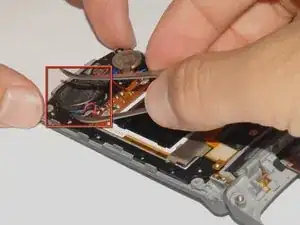

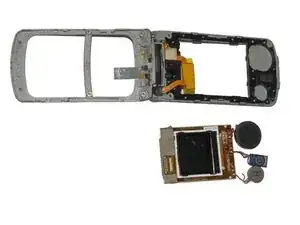

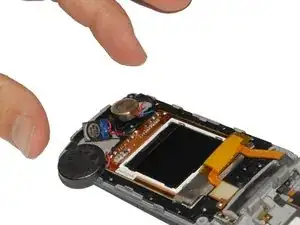

Remove the earpiece and gyroscope by lifting them out of the phone casing using tweezers.
-
-
-

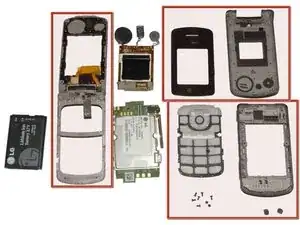

The phone is now fully disassembled.
-
Replace the parts indicated with your new phone casing.
-
To reassemble your device, follow these instructions in reverse order.
