Most of the bottom portion of the phone will need to be removed to install a new motherboard.
Werkzeuge
-
-
Hold your phone with the back casing facing you and the bottom of the phone towards the sky.
-
Push down on the cover and slide down to remove. You should only have to apply minimal pressure.
-
-
-
Insert your finger into the small indentation above the battery.
-
Push down on the battery and pull it away from the phone; it will pop out.
-
-
-
Grasp the edges of the phone with one hand.
-

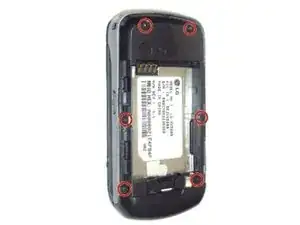

Unscrew the six 5.0-mm Phillips #000 screws located around each side of the back panel of the phone.
-
-
-

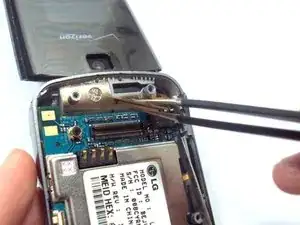

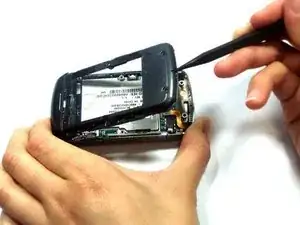

Insert the spudger into the tab at the top of the back panel and push to release the panel.
-
The back panel will then lift away from the rest of the phone.
-
-
-
Flip the phone open with the back side still facing you.
-

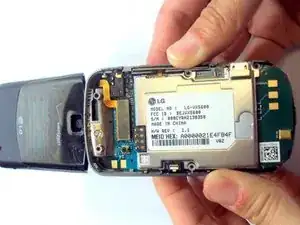

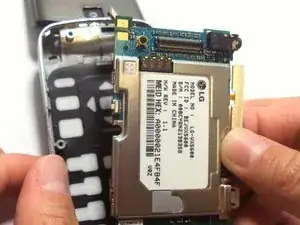

Grasping the phone from underneath, use your fingers to push up on the keypad until the motherboard can be easily lifted up from the plastic outer casing of the phone.
-
To reassemble your device, follow these instructions in reverse order.
