LG VX6000 Keyboard Replacement

Geschrieben von: Adam Altman
  • Kommentare: 1
LG VX6000 Keyboard Replacement

Schwierigkeitsgrad

Very easy

Schritte

9

Zeitaufwand

20 Minuten

Einleitung

The following guide if for removing or replacing the keyboard on the LGVX6000.

  1. Bwf61AlAIBKgTACN

    • Locate the dark gray tab on the back of the phone towards the top. Push the tab towards the top of the phone to release the battery.

    Remove battery

    Ryan Brekke -

  2. jc6sZTZMefRjmPiu

    • Remove the battery by lifting up and rotating the battery away from the bottom edge.

  3. E2X45CkIs2NrIB6x

    • Pull out the two rubber cushions located on the top of the phone using tweezers.

    • Only remove the two cushions that are circled!

  4. lJP2wKnYlFpXyGYo

    • Unscrew the six screws seen on the back using a Phillips 00 Screwdriver.

    • Remove screws and carefully place on an uncluttered surface or in a small container.

  5. IdqOLaoayUCisgJQ

    • Carefully remove the back of the phone gently using your fingernails or tweezers.

    • There are a pair of red and blue wires that plugs into the motherboard. These wires will snap if you force the pieces apart.

    • To reattach the back, you must plug these wires back in.

  6. aoA6d2MHntuFWeYK

    • Carefully peel off the adhesive tab as shown in the photo

    • The tab should not fully separate from the phone.

  7. 1VaBhYoThhEbEFdV
    1VaBhYoThhEbEFdV
    YnFvUyERbU4LABV5

    • Locate the yellow connection towards the top of the phone. This is directly connected to the screen.

    • Remove the connector by carefully prying it away from the motherboard and lifting it away from the phone

    • Do not pull too hard on the connector.

  8. wensKXfUNIRhWDaZ

    • Gently lift a corner of the motherboard away from the casing to remove.

  9. AKOeV2ZDui43kUKC

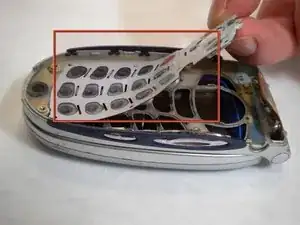

    • Peel the white keypad off the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
