Einleitung

These steps show how to remove the phone's front case. This allows access to many of the components located on the outer face of the phone.

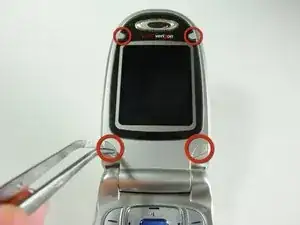

  1. 2mUXfU14gMCC5jpd
    • Remove the four grey plugs using either tweezers or a push pin.

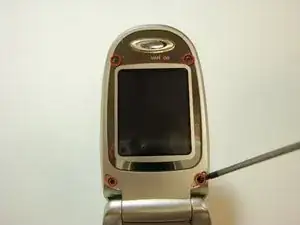

  2. d51WMxAs1WQDsoXK
    • Remove the four screws that are now exposed using a Phillips #00 screwdriver.

    • Be sure to put the screws in a safe place as they are very small and easy to lose.

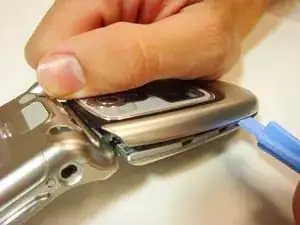

  3. tFMJfhVcCWFrUQFR
    • Once all the screws have been removed, use a plastic opener tool to pry the case from the rest of the phone.

    • Insert the opener tool into the seem between the case and the phone. Apply pressure to separate the two pieces.

    • Do this across the entire length of the seem until the case is no longer attached to the phone.

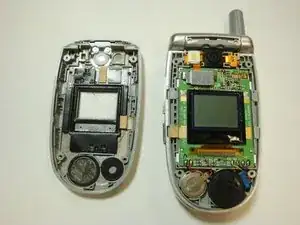

  4. U5lAapoSiaJ3tkNW
    • The case can now be removed and the interior of the front is accessible.

Abschluss

To reassemble your device, follow these instructions in reverse order.
