LG VX7000 External LCD Display Replacement

Geschrieben von: Nichole Shaw
  • Kommentare: 1
LG VX7000 External LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

15 - 30 Minuten

Einleitung

Sat on your phone and cracked the outer screen? Then here is the guide on how to replace it.

NOTE: Replacing the outer screen requires replacing the entire outer casing.

  1. OAOB3gfvNSrRaDQL

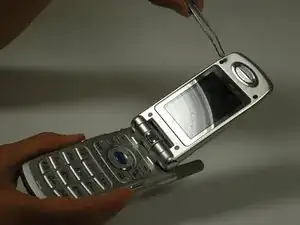

    • Using a pair of tweezers, remove the rubber screw covers located at each corner of the main screen.

    • NOTE: There will be a total of four rubber screw covers removed.

    • Turn the screwdriver counterclockwise to unscrew the screws located under the recently removed rubber plugs.

    • NOTE: The screws can not be completely removed from their holes.

  2. L1mnMaG6xTfBwOkZ

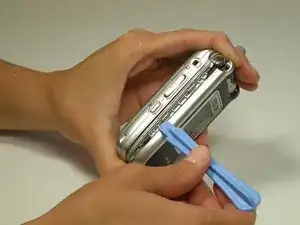

    • Using the "iPod Opening Tool", separate the faceplate from the front of the phone.

    • NOTE: There will be a significant amount of resistance when separating the faceplate from the phone.

    • Align the new faceplate in the place of the previously cracked faceplate, and press the new faceplate onto the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
