LG VX7000 Internal LCD Screen Replacement

Geschrieben von: Nichole Shaw
  • Kommentare: 0
LG VX7000 Internal LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

Replace a cracked internal LCD display.

Note: to replace the internal display, you must replace the entire face plate, not just the plastic screen.

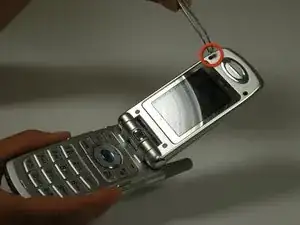

  1. 2SVnoHk1DEfdBtIb

    • Using Tweezers, remove 4 rubber screw covers.

    • Remove screws located under rubber plugs using the screwdriver by turning counterclockwise.

    • NOTE: Screws will not come completely out of phone.

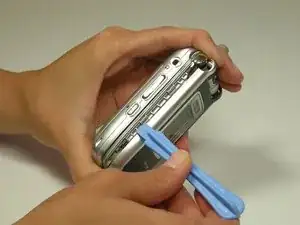

  2. OMxeeXb6rTYqLItX

    • Using the iPod Opening Tool, pry the face plate off the front of the phone.

    • NOTE: There will be a significant amount of resistance to removing the face plate from the phone.

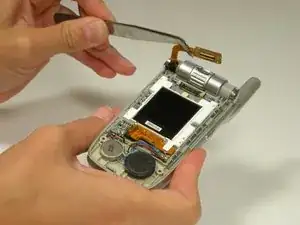

  3. Xf2yGnQOleguWWoy

    • Unsnap gold plate from the secondary logic board.

    • Reposition the plate so that it is out of the way for face plate removal.

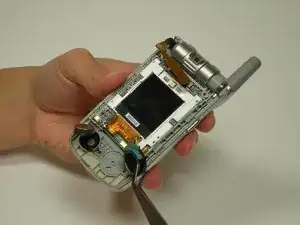

  4. lTFEcjC1XARyLSuY

    • Twist upper half of face plate in order to release it from the hinge.

    • Using tweezers detach the speaker and the secondary battery from the faceplate, leaving wires attached.

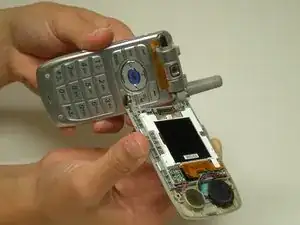

  5. 6GhRDHyfxVgeVpPZ

    • Align new face plate in correct orientation in order to install.

Abschluss

To reassemble your device, follow these instructions in reverse order.
