This guide illustrates how to replace the keypad on the LG VX8350R.

  1. hpnw5moclRckIJwQ
    hpnw5moclRckIJwQ
    oBdlrIDNqooKIkkV
    q2DB3JREn1QrKdJM

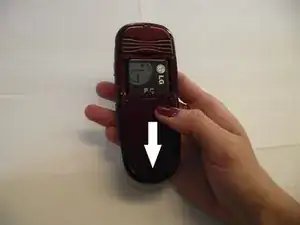

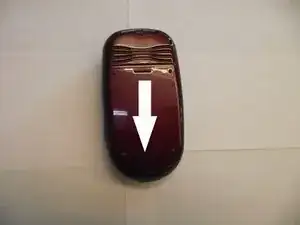

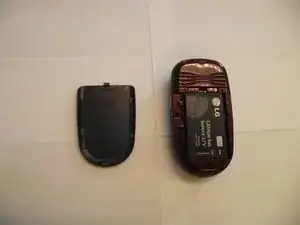

    • Using your thumb, slide battery cover off in a downward direction.

  2. KtcrDuV6ymyEmDYY
    KtcrDuV6ymyEmDYY
    nfOLlGl1nHqqL3cJ

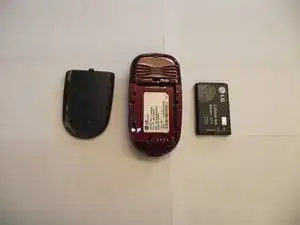

    • Place the plastic opening tool at the top of the battery and pry it out to remove. Set the battery aside.

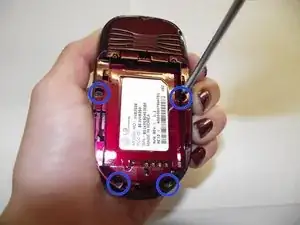

  3. EbBxECG13HmMBUip
    • With a Phillips #00 Screwdriver, remove the four screws in a counter-clockwise direction from the back cover. Set them aside on a surface where they won't roll away; these screws will be used in reassembly.

  4. anY4HRglJ132aS5Q
    anY4HRglJ132aS5Q
    eeifUEvTppNjFVYN
    bEDOCgnCG6lqAjfw
    • Using the plastic opening tool, carefully pry off the back cover. You may need to use the opening tool around the entire edge of the back cover to remove completely.

    • You will have to use some force to remove the upper part of the back cover. Apply enough force to separate the pieces without cracking the back cover.

  5. AM55BACtEUOwZUQX
    AM55BACtEUOwZUQX
    ZTrTXNUprjRjQSom

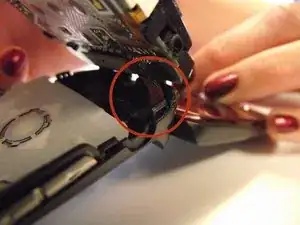

    • Gently lift the green computer chip plate out of the way to expose the keypad.

    • The green computer chip plate cannot be completely removed. It is attached to the phone by a ribbon. Be careful not to break this ribbon when moving the green computer chip plate.

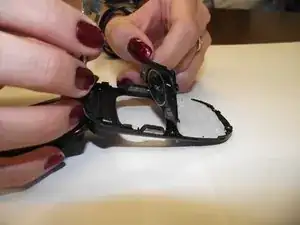

  6. OMuu3YfsYirwpDPC
    OMuu3YfsYirwpDPC
    kX2kMMCmQ6wjutkR
    11AUU2RLURkYXlEi

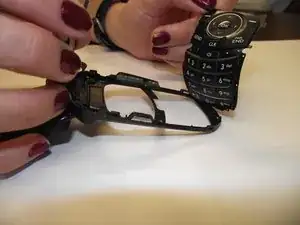

    • Remove the keypad using your fingers and set aside.

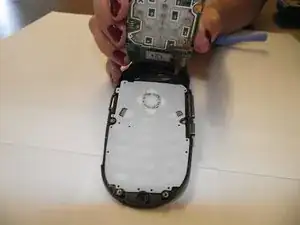

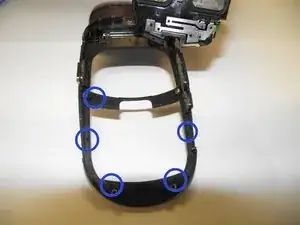

  7. wdgBaTbTyMAkSxkJ
    wdgBaTbTyMAkSxkJ
    gxD2NYmuUsfe4qsh
    PrbyKkdtaXRIa22a

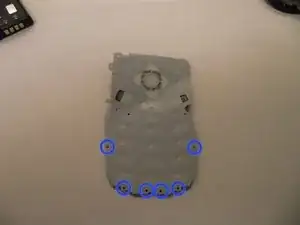

    • Align the small holes in the new keypad with the posts on the phone.

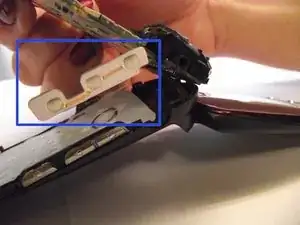

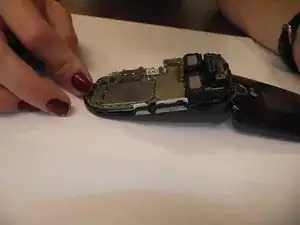

  8. S2pQFRECZQDUMniO
    S2pQFRECZQDUMniO
    oIo1c6mHTuZkBQUf
    tWTROSQhZIvlApcW

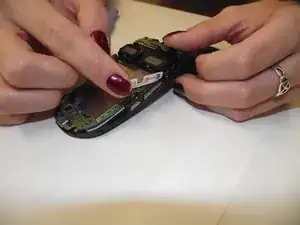

    • When replacing the computer chip, the sensor bar for the volume button may pop out of place. If this occurs, gently push the bars back into place behind the buttons with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
