LG VX8550 Speaker Replacement

Geschrieben von: Nathan Jones
  • Kommentare: 0
LG VX8550 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

5 Minuten

Einleitung

Steps to replace the LG VX8550 speaker

  1. 1Odlp5IH5XkrlhZ3

    • Slide the battery release up.

  2. hdWRAHV2ODpJtEqP

    • Remove the battery by lifting away from the case.

  3. LRArl2IYUKx32jbe

    • Remove the 2 screw covers next to the rear speaker with a Push Pin.

  4. QsEVGZERHrcnwckp

    • Remove the 4 cover screws with a Philips #00 screwdriver.

  5. sGHSYuZOc2RC5tG1

    • Use the iPod opening tool to pry off the back casing.

  6. qH2F3yCTpbKMduNE

    • Continue sliding the iPod opening tool around the seam of the casing to separate the front and back casings.

  7. iqMZZq33EBq2Gi6n

    • Separate the casing halves.

    • Be sure to keep track of the side buttons as they fall out.

  8. 5tAQPFnT5vWwp5GT

    • With the back casing removed the speaker is visible.

  9. vJnVIQlHvAN1xfaO

    • Lift up under top end of circuit board with the Spludger to access retaining clip.

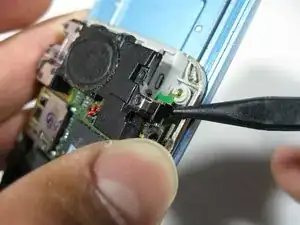

  10. q5noGqNWgTjZjLUZ

    • Carefully pry up on retaining clip with the Spudger to release the speaker.

  11. KK3llQYKPs3POYvA

    • Carefully unplug speaker connector from circuit board with your fingers.

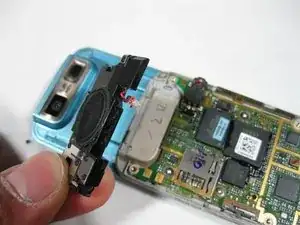

  12. nuxbkUmF1X1lRSBh

    • Remove the speaker by lifting up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
