Einleitung

If the side keys of your LG VX8560 are sticky or stop functioning you may want to replace them. Follow this guide to access the side buttons of your LG VX8560 phone.

  1. 4kctMTUYZ54bKQaS

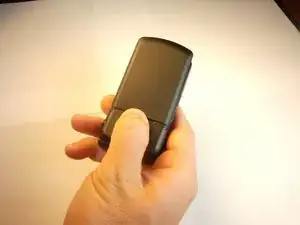

    • Flip the phone over so its backside is facing up

  2. FlSdOvXVO2wyC22o

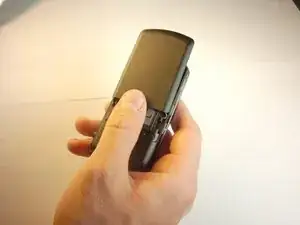

    • Push the battery cover from the indentation and slide the battery cover away from phone to remove battery cover

  3. cMgxMCNeRCKrJloD
    cMgxMCNeRCKrJloD
    sZxhGj6KcEOoWOcA

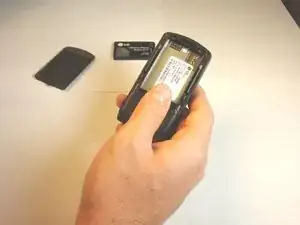

    • Remove the battery from the phone

  4. RKoKiTjpIpbFHynf
    RKoKiTjpIpbFHynf
    Vlsd1qWJYnJUbd5W

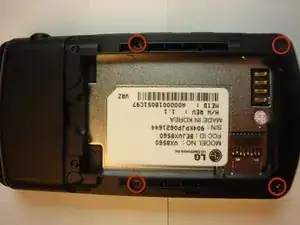

    • Using a Phillips #00 screwdriver, remove all four screws that are visible along the edge of the phone

  5. U6hTa2SuvHJOpY1l
    U6hTa2SuvHJOpY1l
    PMnUZHjYWPqknlyk
    ACju5kZnqmAynyeK

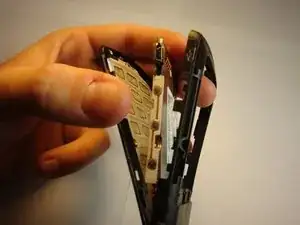

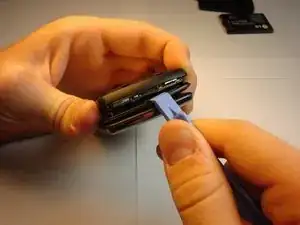

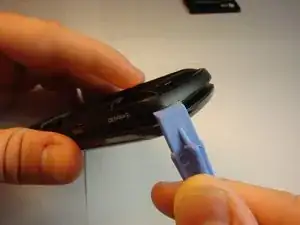

    • Find the seam between the phone’s keypad cover and back cover, and slide a plastic pry tool along the edge to gently pry the two pieces apart without completely separating them.

    • The motherboard should be visible. Do not separate the two covers. They should be held together by a screw at the axis of the phone.

  6. MeOkVMAoNmIQKnuv
    MeOkVMAoNmIQKnuv
    QDSVeKYfruRqiQX5

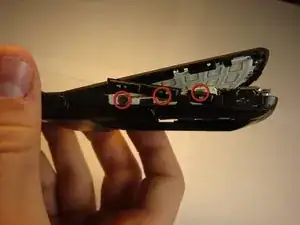

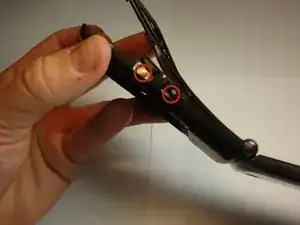

    • Place the side keys so that they are aligned with the silver circles located on the side of the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
