LG VX8700 Keypad Replacement

Geschrieben von: tnscholz
  • Kommentare: 1
LG VX8700 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

The guide outlines the steps necessary to replace the keypad on the LG VX8700. The keypad is used to to help direct actions on the phone.

  1. lSX3YKkAqXS3UGcj
    lSX3YKkAqXS3UGcj
    3EBkhUnyhXkaswHF

    • Make sure the phone is completely off.

    • Remove the back cover by sliding the tab away from the phone using one finger.

  2. p5QARnCM5cYMDNh3
    p5QARnCM5cYMDNh3
    HfnDYkKWXNiJQl4v

    • Lift one side of the battery using a plastic opening tool or your fingers.

    • Carefully remove the battery and set it aside.

    • When installing the new battery, make sure to align the metal pins with those of the phone.

  3. P24b6uPNCfwcAW2I
    P24b6uPNCfwcAW2I
    sLFdQHIOGRIceaOI

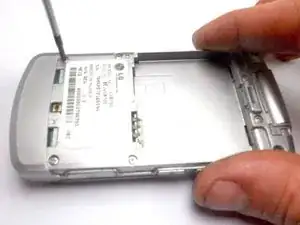

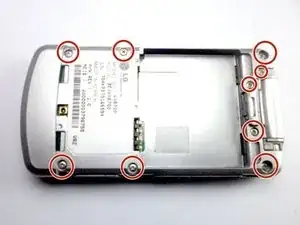

    • Remove the nine 4 mm screws from the back cover with a Phillips #0 screwdriver.

  4. YbeCB6l1r4yoVuvQ
    YbeCB6l1r4yoVuvQ
    GUALQ6WQhZlAMMwp

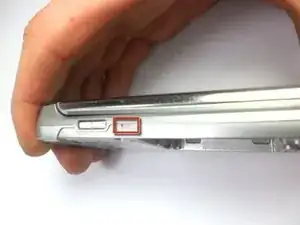

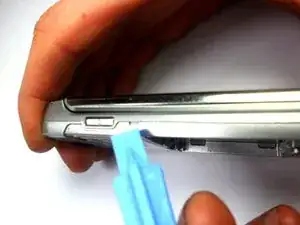

    • Insert the tip of the iFixit opening tool into the small notch on the side of the case.

    • Slide the opening tool along the seam and around the edge of the phone to separate the case.

  5. WxNENfTvmXEHWg3r

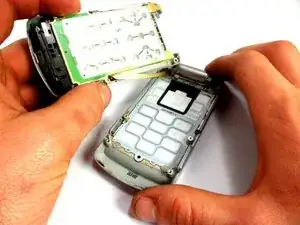

    • Separate the two halves of the phone.

    • The back of the phone, which houses the motherboard and keypad, is displayed on the left.

    • The plastic casing is displayed on the right.

  6. 3Uf2KVIQBtTEVcne
    3Uf2KVIQBtTEVcne
    sQ2SuRGhpcZpgJyR
    ywStMnUnGoZEWGse

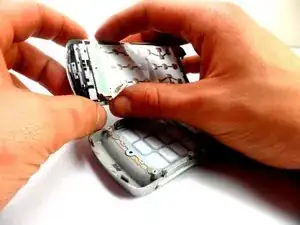

    • Hold the phone casing with one hand and the keypad assembly with the other.

    • Separate the phone casing from the keypad/motherboard.

  7. wkusIhx3H2AtGKJb
    wkusIhx3H2AtGKJb
    GMBHGrfFVTLuDf1r

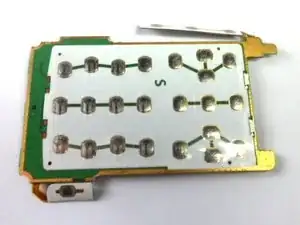

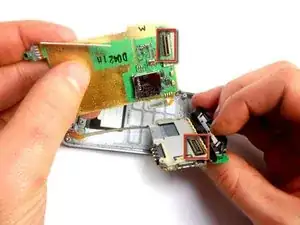

    • Pull the two boards apart to separate the keypad from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

tnscholz

Mitglied seit: 20/01/12

18 Reputation

Ein Kommentar

When I separated the two halves a small brass piece came out and your instructions do not show nor mention what this is or where it goes. Not even a caution about it coming out upon separation of the halves. It appears to belong on one of the screw posts and because it is brass I believe it is supposed to complete a circuit.
