LG VX8700 LCD Screen Replacement

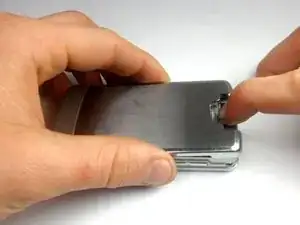

Remove the back cover by sliding the tab away from the phone using one finger.

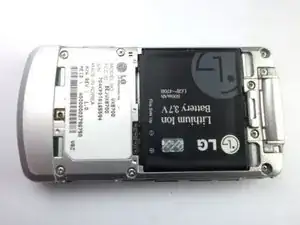

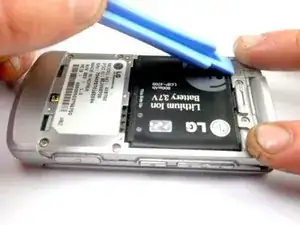

Lift one side of the battery using a plastic opening tool or your fingers.

Carefully remove the battery and set it aside.

Turn your phone around and open the flip phone.

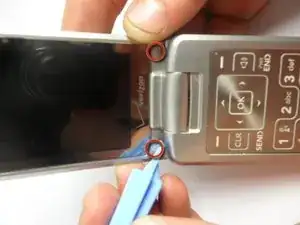

Locate the two grey rubber plugs on the LCD portion of the phone. These plugs cover up two screws.

Remove the two grey screw-covers at the bottom of the screen

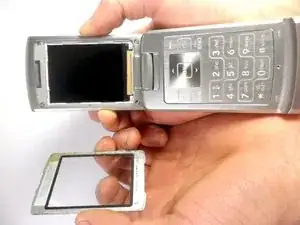

Remove the screen by using the tab to eject the screen.

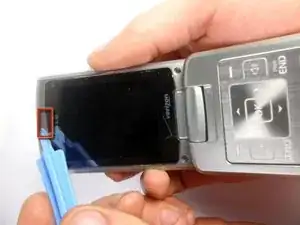

There is a gap between the case and the screen near the ear piece

Insert the plastic opening tool in the gap and pry the screen up.

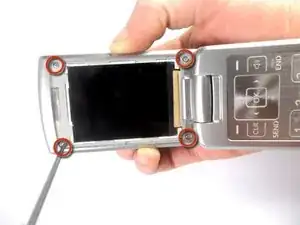

Unscrew the four corner 3.21mm screws to separate the the top cover of the phone

Turn your phone around

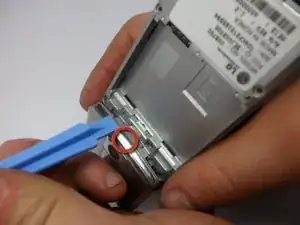

Remove the top cover of the phone by inserting the plastic opening tool into the groove.

Carefully open the cover.

Desolder the top ear piece using a soldering iron to remove the component

The ear piece is the black component that is located at the top with black and red wires

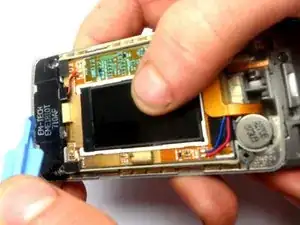

Remove the ear piece from the phone by lifting it using a plastic opening tool.

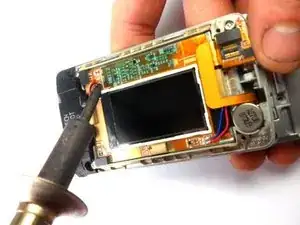

Desolder the wires connected to the LCD board using a soldering iron

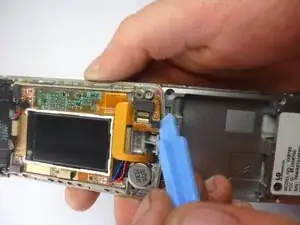

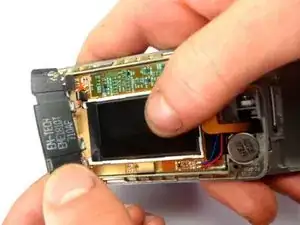

Disconnect the Ribbon connecting the two pieces carefully with the plastic opening tool.

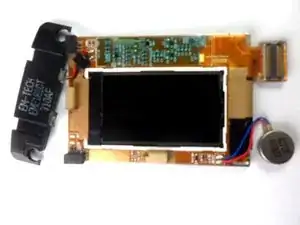

Remove the LCD screen.
