The LCD screens are connected as one unit, and therefore should be removed together.

Werkzeuge

  1. LkjQSpuWUjRKFNLs
    • Remove the two triangular pads at the top of the two speakers.

    • These pads have adhesive to keep them situated, so you may want to use a fine-tipped object, such as a screwdriver or a pen, to remove them. It is easiest to place the fine-tipped object in the small indent in the corner of these pads.

  2. 4VQxh4qDxLFEstol
    • Remove the two rubber cylinders from their shafts. These cover more screws.

    • This requires a little more effort, so you may need to "dig" them out.

  3. 3BCAtkhXlVwLbyae
    • Now remove the four screws.

    • The screws are small, so put them somewhere that you can easily keep track of them.

  4. VCT2MBfjFG3N5vJ5
    • Starting on the side with blue square, pry the faceplate upwards with the flat end of a spudger.

    • Continue to slide the flat edge along the seam of the faceplate.

    • You should hear popping or snapping noises as the faceplate is being removed.

  5. Zmy1ZtBURCLCLZLy
    Zmy1ZtBURCLCLZLy
    YJvZSrfucdrFZmoW
    • The faceplate is attached by wires, so do not pull the faceplate very far away from the phone.

  6. dVYbXUkkky2pP2Tm
    dVYbXUkkky2pP2Tm
    nhwrFvQ5nQNVglrU
    jCbfDKdkv1Yj2ECs
    • The faceplate is still attached through speakers that travel from the ear-piece to the motherboard.

    • Carefully wedge the flat or pointed end of the spudger beneath the ear-piece and the faceplate.

    • This may require a bit of force, as the ear-piece is stuck to the faceplate with adhesive.

  7. eIHGIWVDrW6UKQwQ
    • The faceplate and keypad can now be completely removed from the phone.

  8. BjHFDMexMalT3fKk
    BjHFDMexMalT3fKk
    p5DrC2GCOL1PK4or
    YrQLTF3SDGm4UAMY

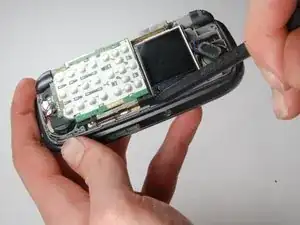

    • Wedge the spudger into the small gap between the phone and the metal casing of the motherboard.

    • Slide the spudger underneath the metal and along the edge. The motherboard should begin to rise.

    • There is a ribbon at the end of this groove, do not slide the spudger into the ribbon.

    • Now use the spudger to lift the other side of the motherboard.

  9. uipXdvTROPbH2vSe

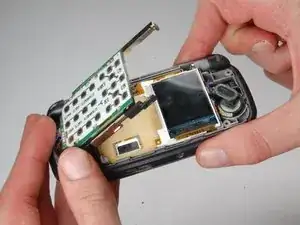

    • Lift the motherboard at an angle.

    • Do not completely remove the motherboard. Doing so will tear the ribbon!

  10. FTdkdoFGsWEnDVQd
    FTdkdoFGsWEnDVQd
    VsGaLsOAYWMrkSly

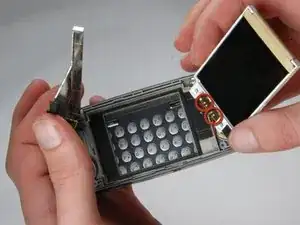

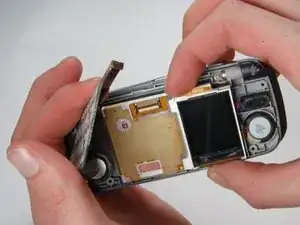

    • Gently pull the LCD screen upwards.

    • It can be tricky do this, you may want to use a spudger to pry it up if it doesn't pull up easily.

    • This step requires soldering. Only do this step if you are OK with soldering small wires.
