LG VX9800 Logic Board Replacement

Geschrieben von: Steven Clark
  • Kommentare: 0
LG VX9800 Logic Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

If your front screen, keyboard or speakers stop working you may need to replace your logic board. Follow this guide to do it.

  1. LkjQSpuWUjRKFNLs

    • Remove the two triangular pads at the top of the two speakers.

    • These pads have adhesive to keep them situated, so you may want to use a fine-tipped object, such as a screwdriver or a pen, to remove them. It is easiest to place the fine-tipped object in the small indent in the corner of these pads.

  2. 4VQxh4qDxLFEstol

    • Remove the two rubber cylinders from their shafts. These cover more screws.

    • This requires a little more effort, so you may need to "dig" them out.

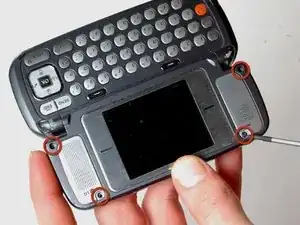

  3. 3BCAtkhXlVwLbyae

    • Now remove the four screws.

    • The screws are small, so put them somewhere that you can easily keep track of them.

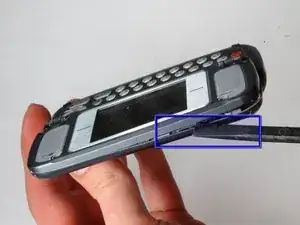

  4. VCT2MBfjFG3N5vJ5

    • Starting on the side with blue square, pry the faceplate upwards with the flat end of a spudger.

    • Continue to slide the flat edge along the seam of the faceplate.

    • You should hear popping or snapping noises as the faceplate is being removed.

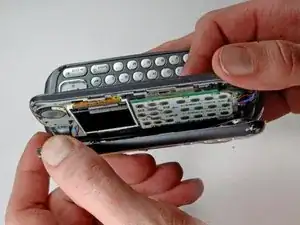

  5. Zmy1ZtBURCLCLZLy
    Zmy1ZtBURCLCLZLy
    YJvZSrfucdrFZmoW

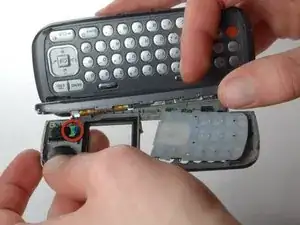

    • The faceplate is attached by wires, so do not pull the faceplate very far away from the phone.

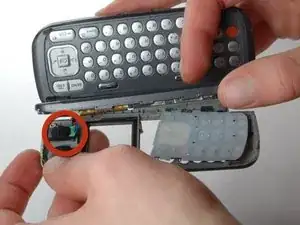

  6. dVYbXUkkky2pP2Tm
    dVYbXUkkky2pP2Tm
    nhwrFvQ5nQNVglrU
    jCbfDKdkv1Yj2ECs

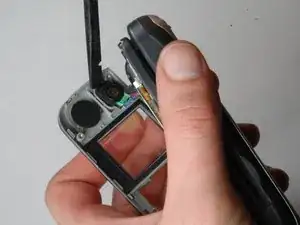

    • The faceplate is still attached through speakers that travel from the ear-piece to the motherboard.

    • Carefully wedge the flat or pointed end of the spudger beneath the ear-piece and the faceplate.

    • This may require a bit of force, as the ear-piece is stuck to the faceplate with adhesive.

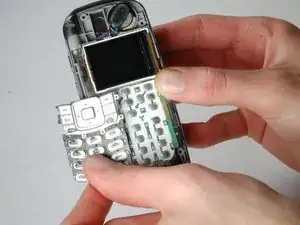

  7. eIHGIWVDrW6UKQwQ

    • The faceplate and keypad can now be completely removed from the phone.

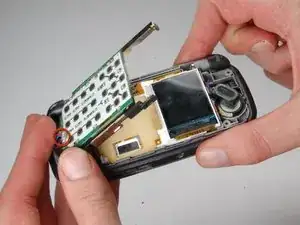

  8. vNmLc3ScMsTyAOHE
    vNmLc3ScMsTyAOHE
    datIDVLqKOKMCIc4
    uVUShSlKTvLJPSGU

    • Use Spudger to pry against the side side of the phone and the logic board to release it.

    • The logic board is connected to a thin silver piece of metal highlighted with a blue square in the photo. Pry against this piece and the phone to release the board.

    • The logic board is connected to the phone and speaker with the set of connections highlighted with a red circle. Do not yank on the board once its released

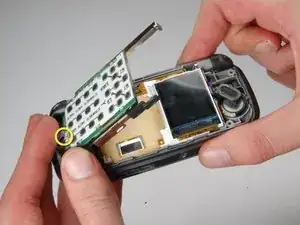

  9. PkQJJKSZXpQFmOE4

    • Remove 4 wires from logic board. Replace board by soldering back the 4 wires and you're done!

    • This step requires soldering. Only do this step if you are OK with soldering small wires.
