If your speakers decide to break you can use this repair guide to replace them. If you are planing to do this it requires soldering of small parts, so only follow this guide if you feel comfortable doing this.

  1. LkjQSpuWUjRKFNLs
    • Remove the two triangular pads at the top of the two speakers.

    • These pads have adhesive to keep them situated, so you may want to use a fine-tipped object, such as a screwdriver or a pen, to remove them. It is easiest to place the fine-tipped object in the small indent in the corner of these pads.

  2. 4VQxh4qDxLFEstol
    • Remove the two rubber cylinders from their shafts. These cover more screws.

    • This requires a little more effort, so you may need to "dig" them out.

  3. 3BCAtkhXlVwLbyae
    • Now remove the four screws.

    • The screws are small, so put them somewhere that you can easily keep track of them.

  4. VCT2MBfjFG3N5vJ5
    • Starting on the side with blue square, pry the faceplate upwards with the flat end of a spudger.

    • Continue to slide the flat edge along the seam of the faceplate.

    • You should hear popping or snapping noises as the faceplate is being removed.

  5. Zmy1ZtBURCLCLZLy
    Zmy1ZtBURCLCLZLy
    YJvZSrfucdrFZmoW
    • The faceplate is attached by wires, so do not pull the faceplate very far away from the phone.

  6. dVYbXUkkky2pP2Tm
    dVYbXUkkky2pP2Tm
    nhwrFvQ5nQNVglrU
    jCbfDKdkv1Yj2ECs
    • The faceplate is still attached through speakers that travel from the ear-piece to the motherboard.

    • Carefully wedge the flat or pointed end of the spudger beneath the ear-piece and the faceplate.

    • This may require a bit of force, as the ear-piece is stuck to the faceplate with adhesive.

  7. eIHGIWVDrW6UKQwQ
    • The faceplate and keypad can now be completely removed from the phone.

  8. BjHFDMexMalT3fKk
    BjHFDMexMalT3fKk
    p5DrC2GCOL1PK4or
    YrQLTF3SDGm4UAMY
    • Wedge the spudger into the small gap between the phone and the metal casing of the motherboard.

    • Slide the spudger underneath the metal and along the edge. The motherboard should begin to rise.

    • There is a ribbon at the end of this groove, do not slide the spudger into the ribbon.

    • Now use the spudger to lift the other side of the motherboard.

  9. uipXdvTROPbH2vSe
    • Lift the motherboard at an angle.

    • Do not completely remove the motherboard. Doing so will tear the ribbon!

  10. FTdkdoFGsWEnDVQd
    FTdkdoFGsWEnDVQd
    VsGaLsOAYWMrkSly
    • Gently pull the LCD screen upwards.

    • It can be tricky do this, you may want to use a spudger to pry it up if it doesn't pull up easily.

    • This step requires soldering. Only do this step if you are OK with soldering small wires.

  11. KgcZFBCsqkRHwxSn
    KgcZFBCsqkRHwxSn
    YLGZriDXIlESbxLU

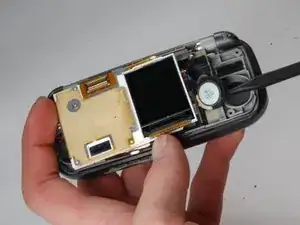

    • Carefully move the LCD screen in front of the logic board and use the spudger to pry against the edge of the speaker

    • The speaker should just pop right out. The only thing holding it in place is an adhesive

  12. iyWqIuLC5ZPFsV1e
    • Remove speaker wires from the LCD screen

    • Replace the speaker and solder back the connections to the LCD screen.

    • This step requires soldering. So only remove wires if you are comfortable soldering together small wires.

  13. gYVItmFhsFXEYpwE
    gYVItmFhsFXEYpwE
    lvLOGipyJrIahPMJ

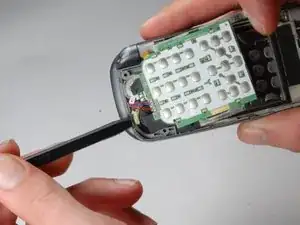

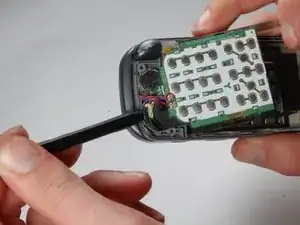

    • Use the spudger to pry against the left speaker to remove it.

    • Two wires attach the speaker to the logic board, so handle carefully.

  14. HW2eN1RIlaPdpnGV
    • remove the wires connected to the logic board

    • Replace the speaker and solder the connections back to the logic board

    • Only remove wires if you are comfortable soldering on a small scale.
