LG Volt LS740 Charging Port Replacement

Geschrieben von: SMcC21985
  • Kommentare: 0
LG Volt LS740 Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Found this in the bottom of a closet and through some troubleshooting decided the charging port was broken.

Couldn't find any instructions here so I'm uploading some.

*Please Ignore the goofy white borders, forgot to consider aspect ratio when taking the pictures*

  1. jFqahX62N6FXwPIE
    jFqahX62N6FXwPIE

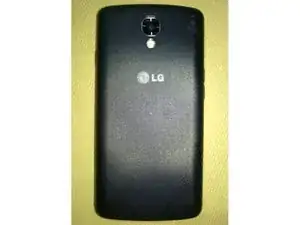

    ShIimtTRGNfH2AUe

    • Always power off and unplug your devices before servicing them.

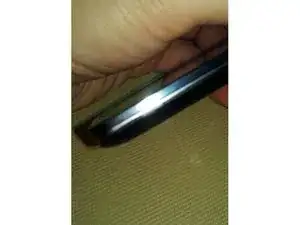

  2. cIMmH1SkZu1yNy3F

    • There is a pry tab you can use your fingernail or a pry tool to remove the rear cover.

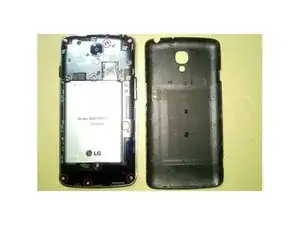

  3. gMaekbSGVPYbQyuR
    gMaekbSGVPYbQyuR

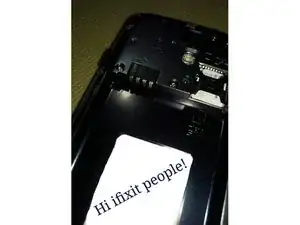

    OLPEgSebpOIsAG3h

    • Note the location of the screws to remove the inner rear panel.

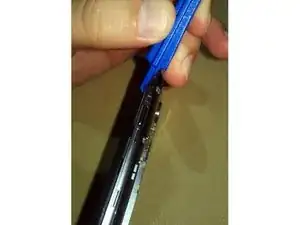

  4. TuwpWpEwGBgWMpVg
    TuwpWpEwGBgWMpVg
    GWJWKKuJEMbM6oZo

    • Remove the 11 screws on the inside rear cover using your Phillips screw driver.

    • See photo from "Remove Battery" step for location of screws.

    • Use your pry tool and carefully work your way around the inside rear cover to undo the snaps and remove it.

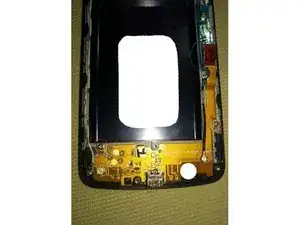

  5. NTIcJRmE5aTuIYMt

    • Disconnect the 3 cables and two screws before attempting to remove the charging port circuitry.

    • Beware the adhesive on the back!

Abschluss

To reassemble your device, follow these instructions in reverse order.
