LG X Power Battery Replacement

Geschrieben von: Chad Sears
  • Kommentare: 4
LG X Power Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

This guide to help you replace the damaged battery to restore your LG X Power back to its former glory.

  1. Mm1uaDNsMgcMdwCR
    Mm1uaDNsMgcMdwCR
    YVvuMLHOM63xQJCr

    • Insert a plastic opening tool above the AUX jack and slide it around the perimeter to pop the back cover off.

  2. pUQcbUGCPdwEs2Z4
    pUQcbUGCPdwEs2Z4
    NkppwQxJJWodaBtY

    • Remove the twelve 2.5mm Phillips #0 screws from the back of the phone.

  3. 2bOuPqrRI1W2BIsN
    2bOuPqrRI1W2BIsN
    D2vxsPHDK1FsO1Id

    • Insert a plastic opening tool underneath the mid-frame and pry upwards until you hear a click.

    • With the plastic opening tool still underneath the mid-frame, work your way around the perimeter until it's free from the smartphone.

  4. GZGJFDiWYtUrUmpt
    GZGJFDiWYtUrUmpt
    uHqVdwKOAKVbx2Xs
    ibCCh1KQN6Thgfj5

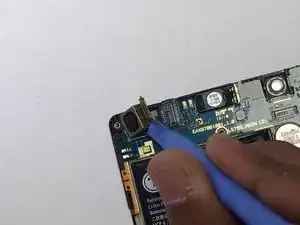

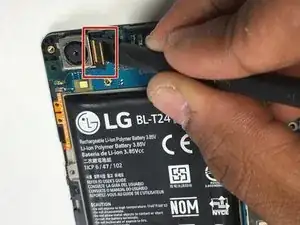

    • Use the flat end of a spudger to disconnect the front and rear cameras from the motherboard.

    • Pull the cameras out to remove them.

  5. Qvfh2eoKJ6Uey4xR

    • Use the flat end of a spudger to disconnect the battery from the motherboard.

    • You will not be removing anything, just disconnecting.

  6. WbAN4J2dePEFvFad

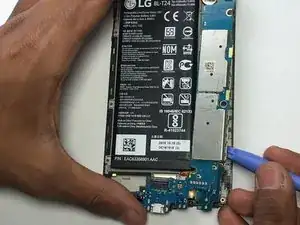

    • Insert a plastic opening tool underneath the motherboard and pry upwards to remove it.

  7. FVXwi2KTAfi6NQqa
    FVXwi2KTAfi6NQqa
    oaCwTuYMJtDIuKkR

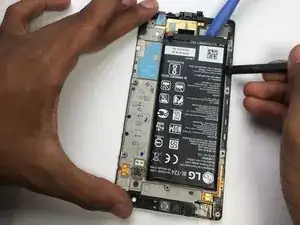

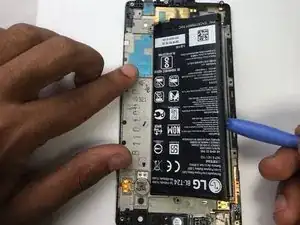

    • Use a spudger and plastic opening tool to carefully pry up the battery.

    • There is a strong adhesive on the back of the battery that will make it difficult to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
