Einleitung

This guide will show how to replace the camera on a LG X Power smartphone.

  1. Mm1uaDNsMgcMdwCR
    Mm1uaDNsMgcMdwCR
    YVvuMLHOM63xQJCr
    • Insert a plastic opening tool above the AUX jack and slide it around the perimeter to pop the back cover off.

  2. pUQcbUGCPdwEs2Z4
    pUQcbUGCPdwEs2Z4
    NkppwQxJJWodaBtY

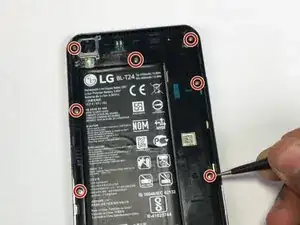

    • Remove the twelve 2.5mm Phillips #0 screws from the back of the phone.

  3. 2bOuPqrRI1W2BIsN
    2bOuPqrRI1W2BIsN
    D2vxsPHDK1FsO1Id

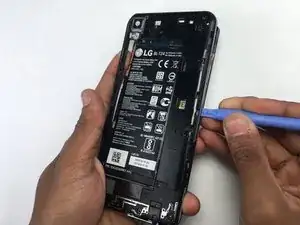

    • Insert a plastic opening tool underneath the mid-frame and pry upwards until you hear a click.

    • With the plastic opening tool still underneath the mid-frame, work your way around the perimeter until it's free from the smartphone.

  4. mOcjQxF4ugMsNB1l
    mOcjQxF4ugMsNB1l
    VlVFJXZ1eSlCeRBy
    • Use the flat end of a spudger to disconnect the front and rear cameras from the motherboard.

    • Pull the cameras out to remove them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
