LG X Power Screen Replacement

Geschrieben von: khaled Albannaw
  • Kommentare: 8
LG X Power Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

This guide will show you how to replace the LCD screen on a LG X Power smartphone.

  1. Mm1uaDNsMgcMdwCR
    Mm1uaDNsMgcMdwCR
    YVvuMLHOM63xQJCr

    • Insert a plastic opening tool above the AUX jack and slide it around the perimeter to pop the back cover off.

  2. pUQcbUGCPdwEs2Z4
    pUQcbUGCPdwEs2Z4
    NkppwQxJJWodaBtY

    • Remove the twelve 2.5mm Phillips #0 screws from the back of the phone.

  3. 2bOuPqrRI1W2BIsN
    2bOuPqrRI1W2BIsN
    D2vxsPHDK1FsO1Id

    • Insert a plastic opening tool underneath the mid-frame and pry upwards until you hear a click.

    • With the plastic opening tool still underneath the mid-frame, work your way around the perimeter until it's free from the smartphone.

  4. GZGJFDiWYtUrUmpt
    GZGJFDiWYtUrUmpt
    uHqVdwKOAKVbx2Xs
    ibCCh1KQN6Thgfj5

    • Use the flat end of a spudger to disconnect the front and rear cameras from the motherboard.

    • Pull the cameras out to remove them.

  5. Qvfh2eoKJ6Uey4xR

    • Use the flat end of a spudger to disconnect the battery from the motherboard.

    • You will not be removing anything, just disconnecting.

  6. WbAN4J2dePEFvFad

    • Insert a plastic opening tool underneath the motherboard and pry upwards to remove it.

  7. FVXwi2KTAfi6NQqa
    FVXwi2KTAfi6NQqa
    oaCwTuYMJtDIuKkR

    • Use a spudger and plastic opening tool to carefully pry up the battery.

    • There is a strong adhesive on the back of the battery that will make it difficult to remove.

  8. HODLFYWvBLbOCiZF
    HODLFYWvBLbOCiZF
    NmZSDJi5gtWqwygW

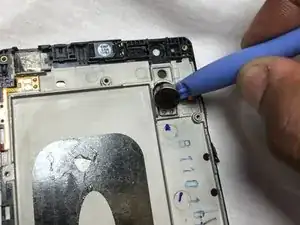

    • Carefully peal off the glued vibration motor by using the plastic opening tool.

  9. mSFrlsqpbhBCrWw1
    mSFrlsqpbhBCrWw1
    Ji1RxhfTHY52AXy1

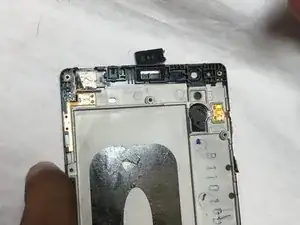

    • Using the plastic opening tool, pry off the ear speaker.

    Excellent work. I support the right to repair . Thank you.

    tom chong -

Abschluss

To reassemble your device, follow these instructions in reverse order.
