Einleitung

Use this guide to remove the screen on your front panel assembly.

  1. VZuIXvipXTi6fNay
    • Power down the device and make sure that it is turned off.

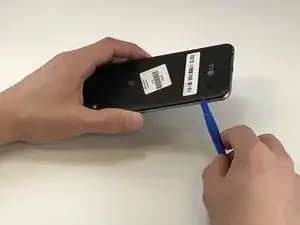

    • Insert the plastic opening tool into the bracket space on the back bottom left of the phone.

    • Gently twist tool clockwise until the back case pops open [this will create a small gap].

    • Slide the tool along the gap around the entire device.

  2. SfaQQ1XArhE5dMnH
    SfaQQ1XArhE5dMnH
    SmPvHd5xVQwCuMMe

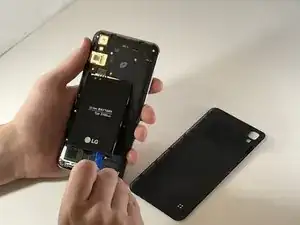

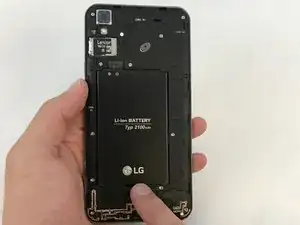

    • Insert the plastic opening tool into the indent below the battery, and pry up to lift and remove the battery.

  3. VijOIfxQMoqtOdLU
    VijOIfxQMoqtOdLU
    BQcRCisqOjcLhkJv

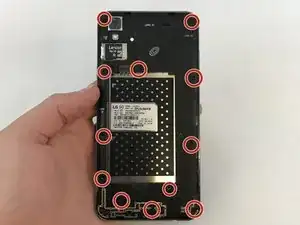

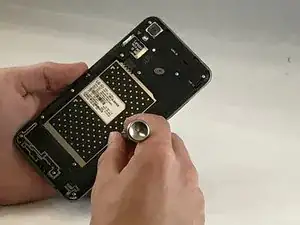

    • With a Phillips #000 screwdriver, remove the twelve 3mm screws.

  4. ppapQKF2VxZPEVaW
    ppapQKF2VxZPEVaW
    NSXCjXd1NF1FcYRN
    OqwGqXVCuB2d1Vw3

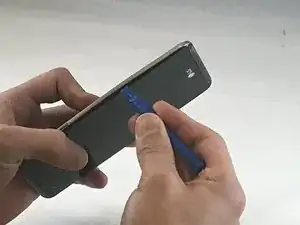

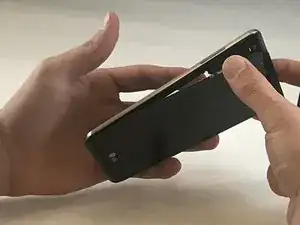

    • Create a gap with plastic opening tool by applying pressure between glass screen and plastic edge of device.

    • Slide prying tool around entire device beginning toward the top.

    • Lift off and remove the screen from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
