LG X Style Speaker Replacement

With a Phillips #000 screwdriver, remove the twelve 3mm screws.

Create a gap with plastic opening tool by applying pressure between glass screen and plastic edge of device.

Slide prying tool around entire device beginning toward the top.

Lift off and remove the screen from the device.

Power down the device and make sure that it is turned off.

Insert the plastic opening tool into the bracket space on the back bottom left of the phone.

Gently twist tool clockwise until the back case pops open [this will create a small gap].

Slide the tool along the gap around the entire device.

Insert the plastic opening tool into the indent below the battery, and pry up to lift and remove the battery.

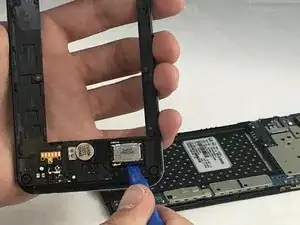

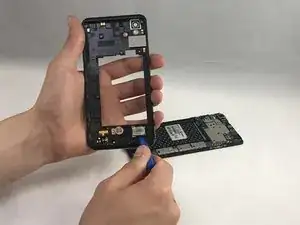

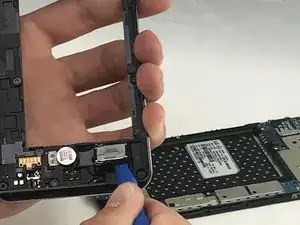

Insert the plastic opening tool into slit around speaker box on mid shield frame.

Gently pop up the speaker housing.

If the adhesive film doesn’t remove itself with the speaker housing, use the plastic opening tool to remove film.
