Einleitung
In this guide you will be removing the front panel from the rest of the phone to access the front keyboard.
Werkzeuge
-
-
Place the phone face down on the table.
-
Use your fingernail or an opening tool to pull down the tab below the battery.
-
Lift the battery out.
-
-
-
Locate the five rubber covers on the back panel of the phone.
-
Use the metal probe to pop out each rubber cover to reveal the screws underneath.
-
-
-
Locate the six 2.5mm screws on the back panel of the phone.
-
Use a #00 Phillips screwdriver to remove each 2.5mm screw.
-
-
-
Locate the seam around the edge of the phone.
-
Insert the plastic opening tool into the seam and pry gently to release the tabs.
-
Work your way around the phone until all tabs are released.
-
Remove the back panel of the phone.
-
-
-

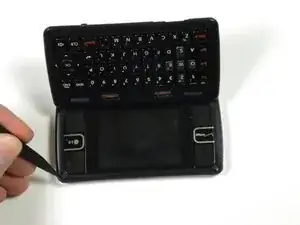

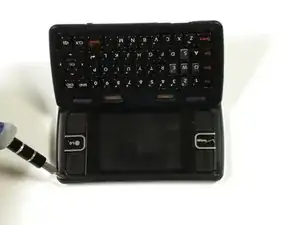

Insert the plastic opening tool in the crease and move it along each edge of the phone.
-
Separate the front panel from the rest of the phone.
-

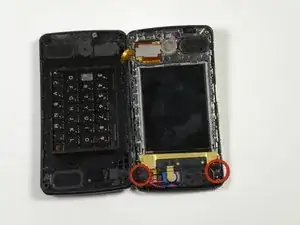

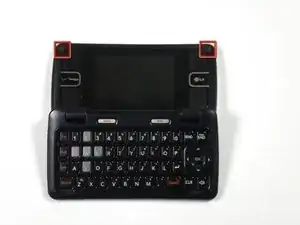

Open the phone to reveal the inside monitor.
-
-
-

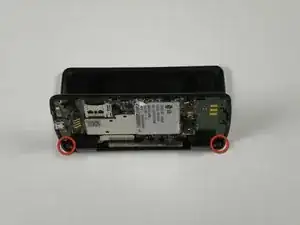

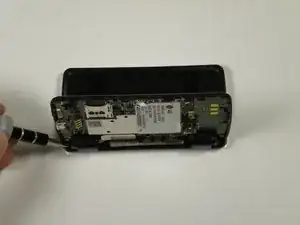

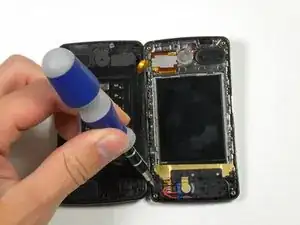

Use a Phillips #00 screwdriver to remove two 2.5mm screws.
-
Using your hands, separate the front panel from the phone by carefully pulling it straight off.
-
-
-

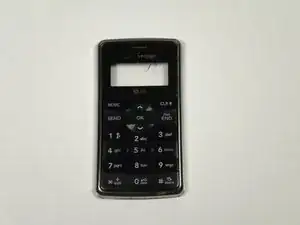

Place the front panel so that the buttons face upwards.
-

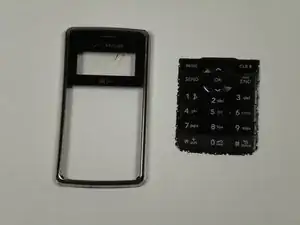

Push on the buttons to remove the keyboard from the front cover.
-
To reassemble your device, follow these instructions in reverse order.
