In this guide you will be removing the back panel and motherboard to access and remove the inside keyboard.
Werkzeuge
-
-

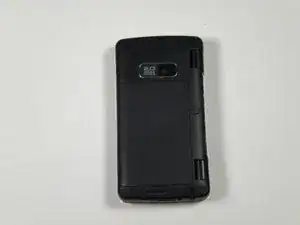

Place the phone face down on the table.
-

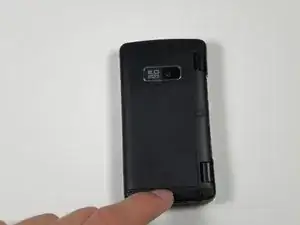

Use your fingernail or an opening tool to pull down the tab below the battery.
-

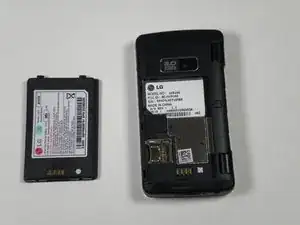

Lift the battery out.
-
-
-

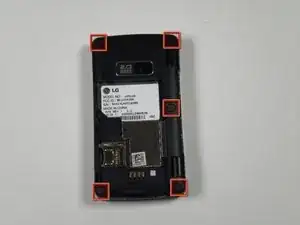

Locate the five rubber covers on the back panel of the phone.
-
Use the metal probe to pop out each rubber cover to reveal the screws underneath.
-
-
-

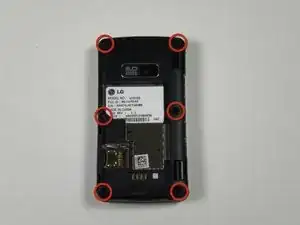

Locate the six 2.5mm screws on the back panel of the phone.
-

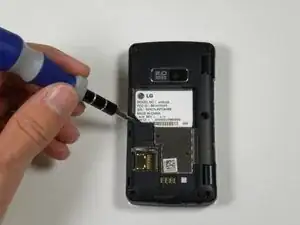

Use a #00 Phillips screwdriver to remove each 2.5mm screw.
-
-
-
Locate the seam around the edge of the phone.
-

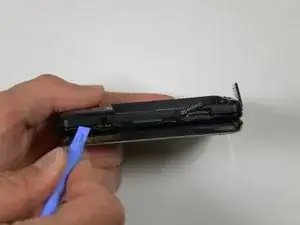

Insert the plastic opening tool into the seam and pry gently to release the tabs.
-
Work your way around the phone until all tabs are released.
-
Remove the back panel of the phone.
-
-
-
Locate the silver strip connected to the logic board. The silver strip is closest to the bottom hinge of the phone.
-
Wedge the plastic opening tool in between the silver strip and the logic board.
-
Lift the plastic opening tool to separate the silver strip from the logic board.
-
-
-
Wedge the plastic opening tool in between the logic board and the phone.
-
Lift the plastic opening tool to separate the logic board from the phone.
-
-
-
Locate the back of the inside keyboard.
-
Take out the inside keyboard. You may need to use your fingernail to pull one of the corners up.
-
To reassemble your device, follow these instructions in reverse order.
