Einleitung

In this guide, you will see how to take apart the LG-A275 in order to replace the phone's speaker.

  1. m1H2CIjZKVAjDVqO
    m1H2CIjZKVAjDVqO
    4tQWXGo2JEcPslnO
    • Turn the phone upside down so that the bottom of the back is facing you.

  2. xPLmuTusVytVmIPW
    xPLmuTusVytVmIPW
    oTPyfscOMVKcOpXL
    • Slide the back down towards you and remove the back cover. You should hear a slight click as the cover comes off.

  3. xRVWhyTaHoZmesZC
    • Gently remove the battery from the device.

  4. GYlhZSWWZNASOjEO
    GYlhZSWWZNASOjEO
    SWT3l5JwVYyHfZrL
    VdsZ5FIMuK2JiqFU

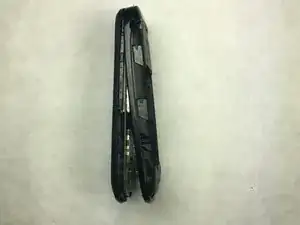

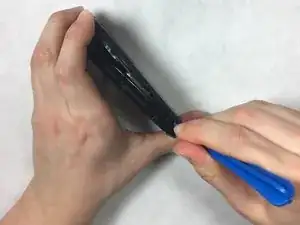

    • Using the plastic opening tool, wedge it around the edge of the phone to release the front plastic piece from the phone.

    • Be careful when using the opening tool not to use brute force and potentially break the fragile phone plastics.

  5. WNbetklHb1AqUrkT
    WNbetklHb1AqUrkT
    LgQcrylQlN2FmSQO
    Fb3xYBTEjuEUo4nf

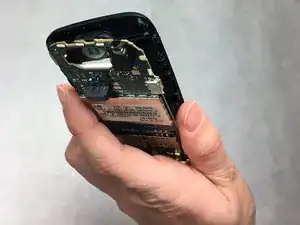

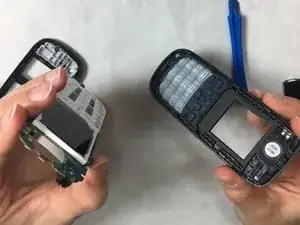

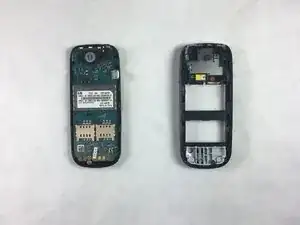

    • After separating the front and back components of the phone, proceed to take off the motherboard. This can be done by releasing the plastic clamps on the corners and edges of the plastic front using your fingernail.

    • Be careful when doing this to avoid breaking the phone plastics, it should release easily.

  6. BNGUbGq3pXHKwPKH
    BNGUbGq3pXHKwPKH
    fuyfuqQlTvUoGQLw
    UDFBtCDwHRZu2T5o

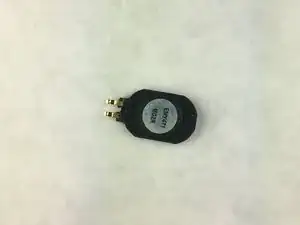

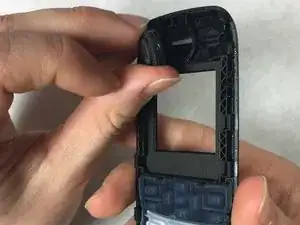

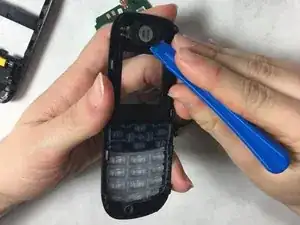

    • Lastly remove the speaker using the plastic opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
