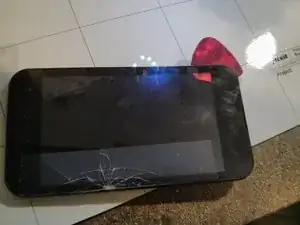

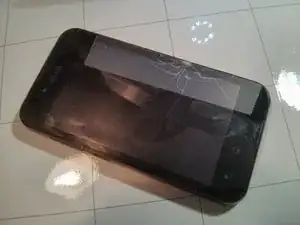

LG-P970 touch screen Replacement

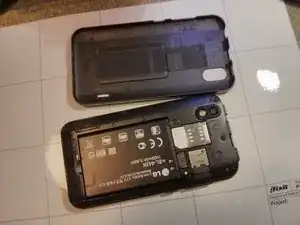

remove the back cover

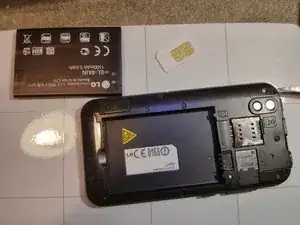

remove the battery

remove the SIM card

remove the µSD card (Memory)

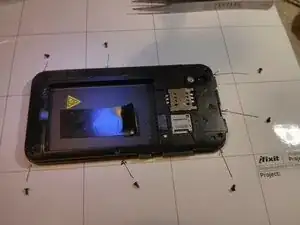

remove 7 screws on the back

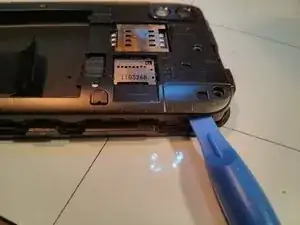

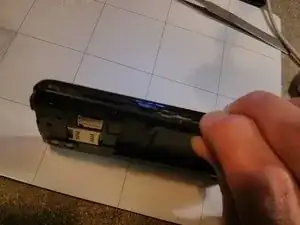

with a tool start to open the back frame

and it's now easy to remove the back frame with hand, carefully

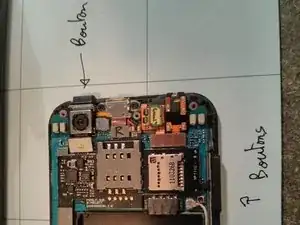

remove buttons

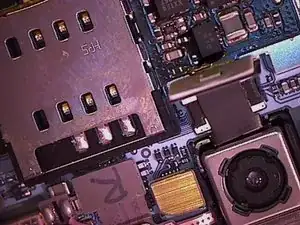

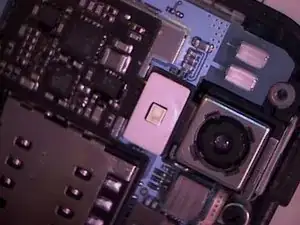

locate the back camera

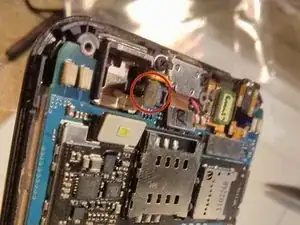

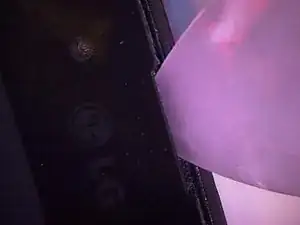

with a tool raise up the led.carefully

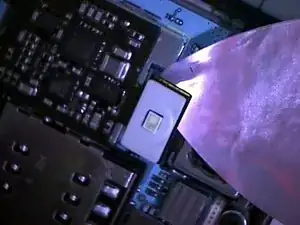

with a tool disconnect the back camera

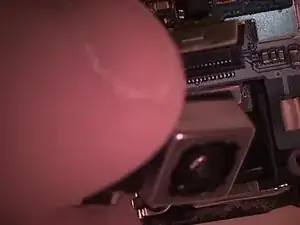

and remove the camera with your fingers.

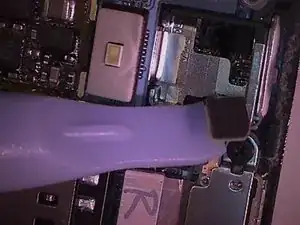

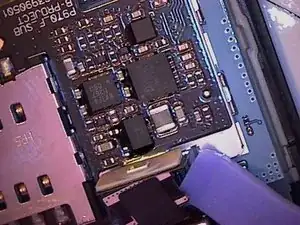

don't forget to remove the little connector of screen, with a tool, right next to the empty slot of the camera.

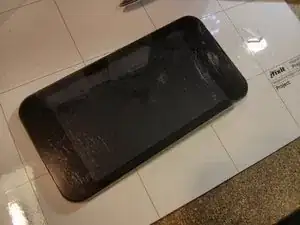

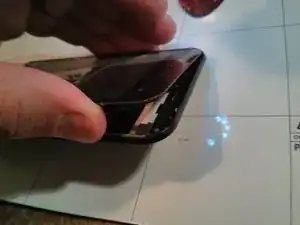

It's time to remove carefully the tactile screen.

don't scratch le LCD!!!

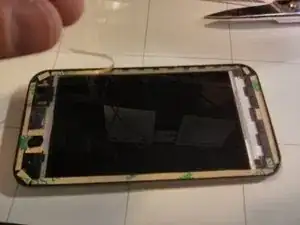

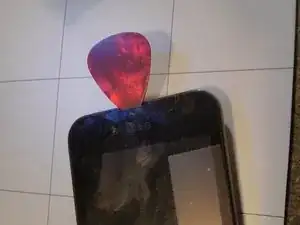

the touch panel is glued with double-sided tape. You can remove it with your fingers. carefull with the touch screen connector.

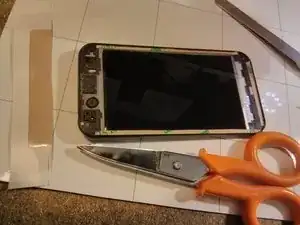

cut new double sided tape (1-2mm width), put it on the are and peel it.

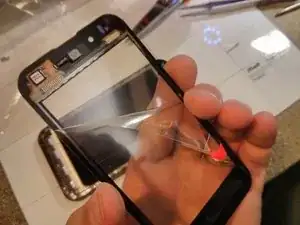

remove the inside protection on the new touch screen.

carefully put the news touch screen on the LG. Take care that the connector goes right through the right hole.

to finish, add all part by reading these instructions in reverse ;-)

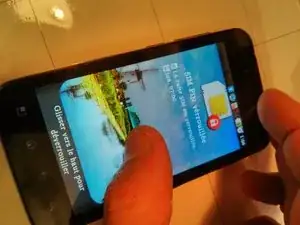

and try if it work !
