Lamp Pull Chain Replacement

Geschrieben von: Anna Rill
  • Kommentare: 4
Lamp Pull Chain Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 20 Minuten

Einleitung

Have you ever had a lamp's pull chain break on you, leaving you with no way to turn it on? We understand. That's why we made this guide to fix the on/off switch on a perfectly good lamp! This guide will help you in repairing a snapped ball chain, allowing you to, once again, turn your lamp on and then off again.

  1. 4T5mJoir1Agos6iU

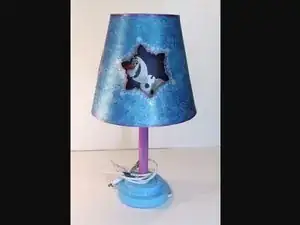

    • Unplug the broken lamp and ensure you have all of the parts necessary for the repair.

  2. eQcaExhnja5WyCSt
    eQcaExhnja5WyCSt
    saDq1MCJxS4eRtI5

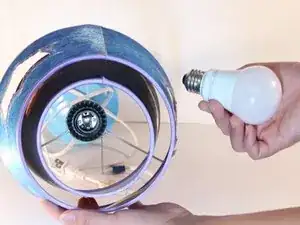

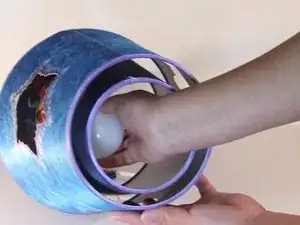

    • Remove the light bulb from the lamp.

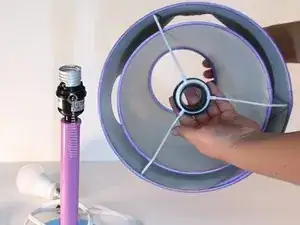

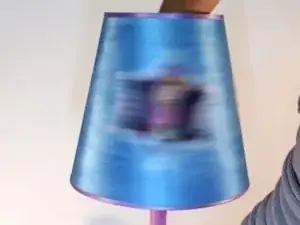

  3. scfv1OqfeAgkrjsc
    scfv1OqfeAgkrjsc
    ZeGyqPkW3rQ4JU5D

    • Unscrew the lamp shade from the base by turning it counter-clockwise.

  4. mhjlNKmLnl311usD

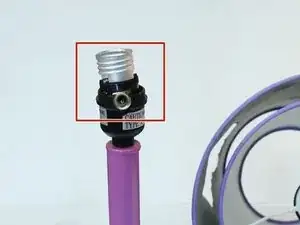

    • Gently pull the socket from the base to expose the broken chain section.

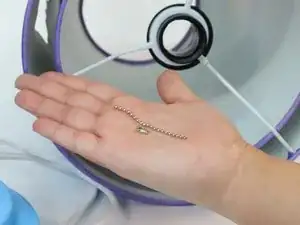

  5. o1DXQBFlYJ1cUYWM
    o1DXQBFlYJ1cUYWM
    xuhHfyIhwCAWLAkA

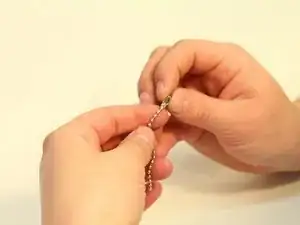

    • Attach the chain connector to the extra chain.

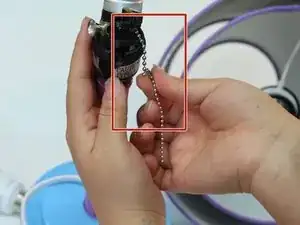

  6. 3ebBhfy1Ywg1hcJT
    3ebBhfy1Ywg1hcJT
    uRTjUHghpZYCnUQu

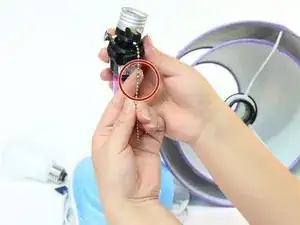

    • Connect the chain with the chain connector to the broken chain on the lamp base.

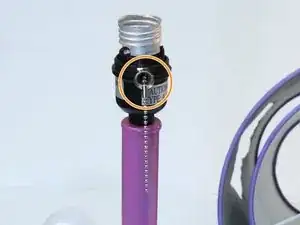

  7. JmahpmvoXFZbj5yv
    JmahpmvoXFZbj5yv
    foxhKWUBQwbxF3fF
    EpnrL1tmogfpZq6C

    • Tilting the lamp in one hand, use your other hand to guide the chain into the hole that leads from inside of the socket to outside of the lamp.

    • The chain will go down through this hole.

  8. W1XCbubVJadedcT3

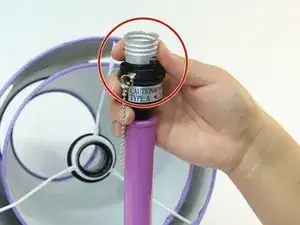

    • Gently push the socket back into place.

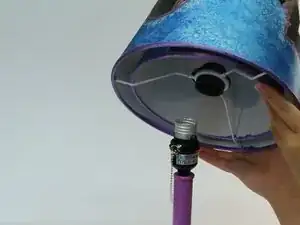

  9. rWQRxMDfXV64YIpE
    rWQRxMDfXV64YIpE
    LkQErDnMydrs34N6

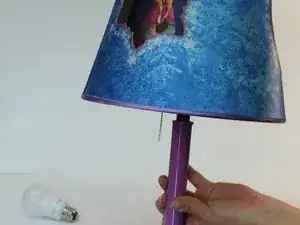

    • Screw the lamp shade back onto the base of the lamp by turning it clockwise.

  10. 5XA1jA2BmBknsbNL

    • Replace the light bulb into the lamp socket.

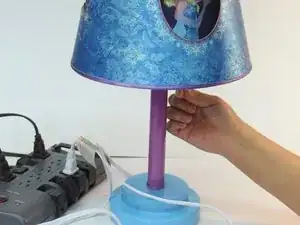

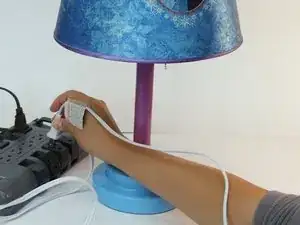

  11. ElgSKRIWO1ERZSTO
    ElgSKRIWO1ERZSTO
    DSuFTkdS2VDoqdOY

    • Plug your lamp into an outlet and turn it on!

    • You will pull down on the chain to do this.

  12. wuFpZZ2n2YeHa1Fj

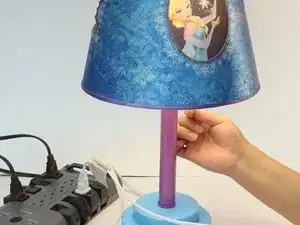

    • Congratulations! You have fixed your lamp.

Abschluss

Congratulations on fixing your lamp!

Tinte & Feder

Anna Rill

Mitglied seit: 07/11/18

295 Reputation

4 Kommentare

You saved my lamp! Thank you for this simple to follow guide.

Erica Chiovarou -

All well and good, but isn’t it more likely that the break will be in the string which runs from the chain into the switch? This can be fixed by disassembling the switch itself - but where can one buy the right string?

gregg.horne -

On my lamp, the problem was not the chain but in the switch itself. This made it necessary to replace the entire socket since the switch was riveted to its base. I made this video which shows how to replace the socket and switch:https://youtu.be/0fLnUPWzLeI

Scott Clark -

Excellent, Thank you!
