This is my guide on how to open a 20” Lasko Wind Fan to remove or replace the blade. This guide can increase the life of the fan. It also shows you how to access the inside of the fan to clean it. This is helpful for dust build up, and prolonging the life of your fan. Also, replacing the blade can increase the life span. Be sure to turn off and unplug this device before cleaning or placing your inside of it.

  1. NgytSoNIHNLXinMD

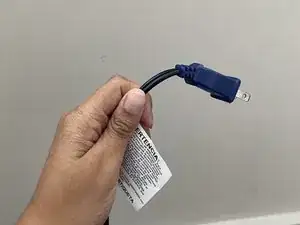

    • Unplug the power cord.

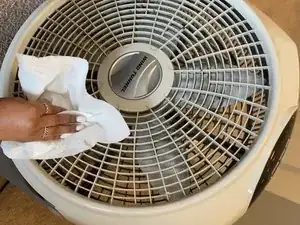

  2. MrbsQ3FluQufOnB5
    MrbsQ3FluQufOnB5
    UJNfRsuPEaODYMbQ

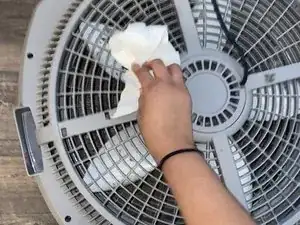

    xgxBeUnMGQROhWuE

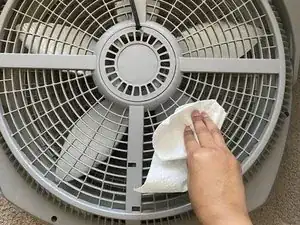

    • Wipe off and dust the front and back grill of the fan.

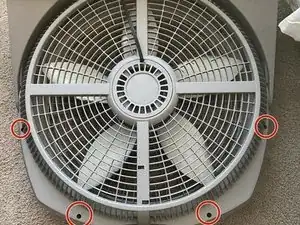

  3. RlAViG44ZFWRB1DO
    RlAViG44ZFWRB1DO
    MWxP6IwysJQsLqra

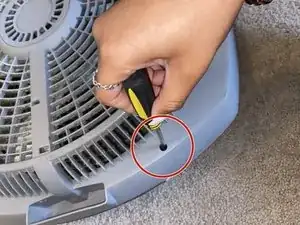

    3JKHSeTxHY62FXwC

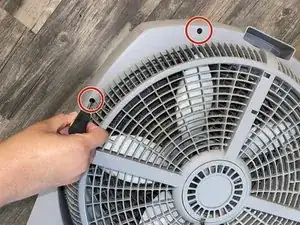

    • Use the Phillips #0 screwdriver to remove four 8.8 mm screws that are marked on the back of the grill.

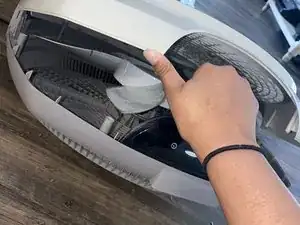

  4. rujyqaXceT3xRY3w
    rujyqaXceT3xRY3w

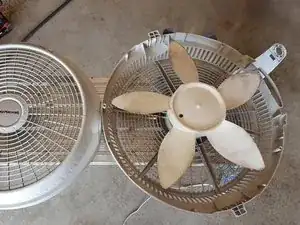

    kZpFJM1i61nGmU5G
    • Unlatch the top of the fan to separate the grill and reveal the blade.

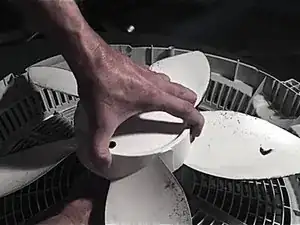

  5. HbGfRZxd3tubdpYg
    HbGfRZxd3tubdpYg

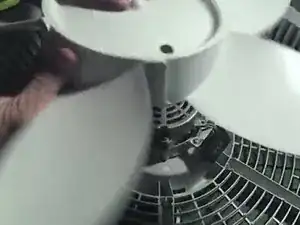

    A14HDlOoGZIZLnI6
    • Grab both sides of the blade and twist counter clockwise to remove it from the base axel attached to the back grill.

Abschluss

To reassemble your device, follow these instructions in reverse order.
