Lasko Box Fan Back Wire Repair

Geschrieben von: Zach Emard

Kommentare: 8

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 30 Minuten

Einleitung

Over time, the wire that runs up the back of the fan behind the blades may come into contact with the blades, and become damaged or severed. This guide is meant to show how to repair the damage.

Werkzeuge

Schritt 1

Make sure the fan is unplugged.

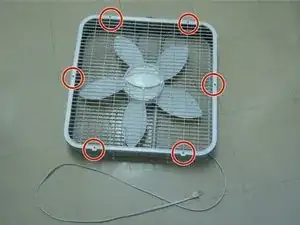

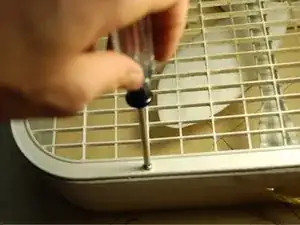

Unscrew the 6 screws on the front of the fan.

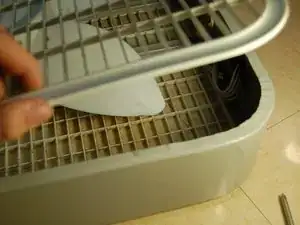

Remove the face plate.

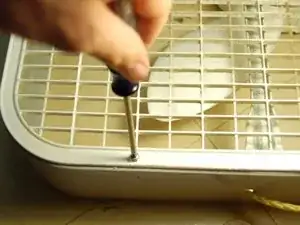

Flip the fan and repeat for the 6 screws on the back. They are in the same position as the front.

Schritt 2

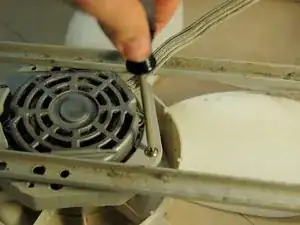

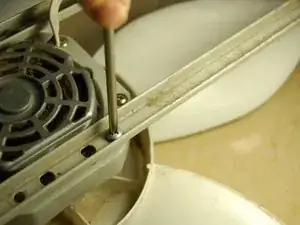

Unscrew the screws attaching the motor/blades to the frame.
Unscrew the screws attaching the plastic frame to the motor.
The blades cannot be removed from the motor.

"The blades cannot be removed from the motor."

Incorrect. The moulded plastic fan blade can be removed fairly easily.

Once the fan's plastic grills have been unscrewed and removed, grasp the round centre of the daisy-shaped fan blades and gently pull it directly away from the motor shaft. It can also be pushed off from behind, once you get it started. Note that the motor shaft has a flat edge along one side that corresponds with the shape of the hole in the plastic fan blade part. These need to be re-aligned before (gently) pushing the fan blade back on to the motor shaft when re-assembling.

Over time, airborne particulate accumulates on the fan blades' edges and inside the unseen hollows at the back of its round centre, which faces the motor. The fan's grills also grime up, so it's good to take all the plastic parts off to clean them occasionally. I power wash them with hot water.

Note: Re-posting this comment with minor edits after it was mislabelled as 'spam' and deleted by the site's robot earlier .

ian_c -

Schritt 3

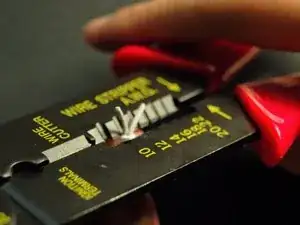

Strip the wires using wire strippers.

How do you do that?

spectators turner - 29/06/18

Schritt 4

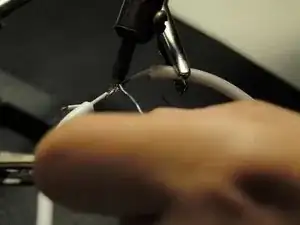

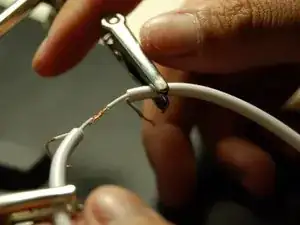

Twist the ends of the wire together
Place wires in soldering kit arms.

Schritt 5

Plug in the soldering iron.

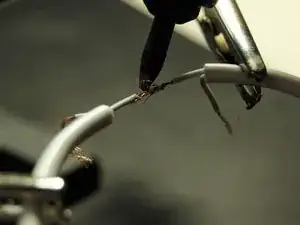

When the soldering iron is hot, solder the wires together.
Place the tip of the soldering iron on the wires directly.
Place the solder on the wire.
Remove the solder and soldering iron from the wire
Repeat this step with the second wire.
Soldering irons are very hot!

Schritt 6

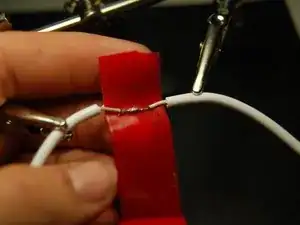

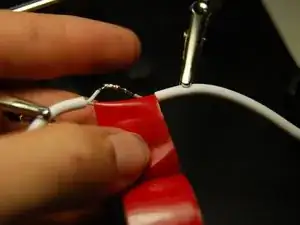

Use electrical tape to insulate the wires.

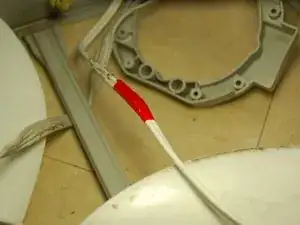

Wrap the tape around each wire.
Wrap tape around the outside of all of the wires.
Make sure to completely cover any exposed wire.

Schritt 7

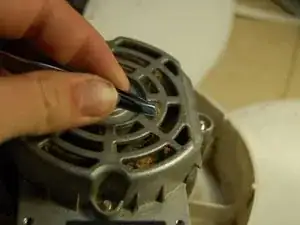

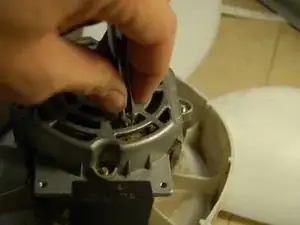

Clean out the dust from the blades and motor using tweezers.

Schritt 8

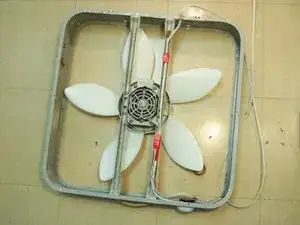

Tape wires along the frame to prevent further damage.
Put the face plates back on and enjoy!

Abschluss

To reassemble your device, follow these instructions in reverse order.
