Einleitung

Without a functioning fuse, a Lasko CD08200 space heater will not be able to operate safely because it will have no safety mechanism to stop the current flow and prevent overpowering the device.

Please refer to this Troubleshooting guide before beginning to make sure replacing the fuse is the correct action to fix your device.

This guide will require soldering if you are not experienced in soldering. lease refer to this soldering guide.

For this replacement guide, you will need: a TR15 screwdriver, a PH2 screwdriver, and a soldering kit. A precision bit driver could also be used with the following bits:

- Torx Security 15 (TR15 bit)

- Phillips 2 (PH2 bit)

Warning: Repairing space heaters can be dangerous. Exercise extreme caution when following this guide.

  1. vkuSbvDHGw1c1ydL
    vkuSbvDHGw1c1ydL
    OvHGB3FItKiZHcdH
    • Turn over the device and place it on its head.

    • Remove the four 14mm screws holding the bottom using a TR15 screwdriver.

  2. SormkDSoOQJQOPcU
    • Remove both 14mm screws from the power cord casing using a Phillips #2 screwdriver.

    • Remove the power cord casing from the device case.

  3. UoD1YPZAOTl12llS
    UoD1YPZAOTl12llS
    gmIheErLC4ZUBGBC
    rUxMmreGvZOY2AUj
    • Cut the sticker on the right side of the device using a Jimmy.

    • Unscrew the four 14mm screws with a Phillips #2 bit on the back of the device.

    • If your screwdriver cannot reach the screw, you can use the metal spudger.

    • Remove the back casing from the device.

  4. LQ4je5xX1OGjoeYK
    LQ4je5xX1OGjoeYK
    EVhTS3nxmuqPVEdh
    Nc6TTSAjXgslXONJ
    • Remove the four 14mm screws housing the fan using the Phillips #2 screwdriver.

    • Remove the top of the fan housing with the fan attached and place it on the table.

  5. Bp1kUDmSN34Zmjph
    Bp1kUDmSN34Zmjph
    EMFYsSBYD1VTHE1C

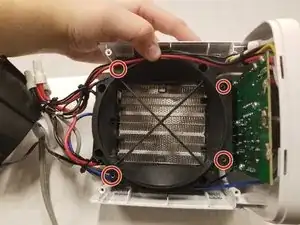

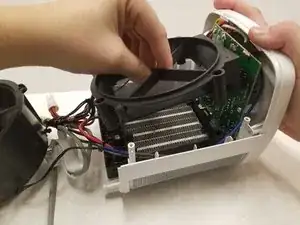

    • Remove the four 14mm screws housing the fan base using the Phillips #2 screwdriver.

    • Remove the fan base from the device.

  6. 4mmDrLUwnfeXxRGV
    4mmDrLUwnfeXxRGV
    iMbW3GnSXUY52yxF
    SBcMw5EgBZkYALP6

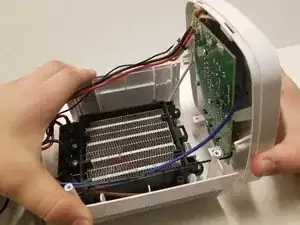

    • Remove the four 14mm screws housing the top panel using the Phillips #2 screwdriver.

    • Remove the top panel from the device.

  7. VBNrnWZBj3xLeECW
    • Remove the four 14mm screws housing the motherboard to the top panel using the Phillips #2 screwdriver.

    • Remove the motherboard from the top panel.

    • When reassembling, align the mainboard to the legs of the front panel as shown in the images. Screw in the first screw in the center of the mainboard.

  8. qYu2lVOVFd2PGQDU
    qYu2lVOVFd2PGQDU
    DJuWMMsbNAmq4pnj

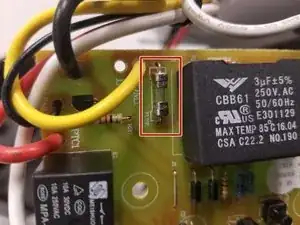

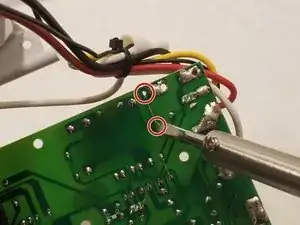

    • Solder the two points on the back of the motherboard to release the fuse on the front.

    • Remove the fuse from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
