Le Pan II Motherboard Replacement

Geschrieben von: Kelly Moniz
  • Kommentare: 0
Le Pan II Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

In this guide, you will be shown step-by-step how to replace your Le Pan II motherboard. The fans should remain attached to the motherboard when you are finished.

  1. Wh6KhNlgMBSEyRIU
    Wh6KhNlgMBSEyRIU
    uFxf3kMXMKjtjrQh

    • Insert metal spudger between front and back panel to pry apart.

    • Continue to pry while moving the metal spudger along the crevice to completely separate two panels.

    • Avoid using metal when opening devices, as it can damage or crack the screen.

  2. G6gHx1Z2CWWZ24ZA
    G6gHx1Z2CWWZ24ZA
    daWTgxLZQLqU3rAB

    • Use the plastic opening tool to disconnect the flat ribbon cable from the motherboard connector.

    • Disconnect the flat ribbon by gently pulling it out from its connecting port.

  3. YdZoCuCxZo2KCAVF
    YdZoCuCxZo2KCAVF
    EDgASYTUtLhs2FmC

    • Use the plastic opening tool to disconnect the display cable from its motherboard connector.

    • Disconnect the display cable by gently pulling it out from its connecting port.

  4. UlWIDLFQCvpcWiXQ

    • Remove grey metal backing from screen.

  5. WRgcYWsMWD5ckiOF

    • Flip the tablet so the screen is facing upward, and use the metal spudger to pry apart the screen from the side pieces.

  6. MkTAFyuQoNaTNpWO

    • Lift and carefully remove the LCD display from the front cover.

  7. 2KSncbAOLFCkXRmu

    • Use the plastic opening tool to push out the wires connecting the battery to the motherboard and put battery aside.

  8. wMXrc2lpeWeGEHBB

    • Use the Plillips 00 screwdriver head to unscrew the screws to the motherboard.

    • Reminder: There should 8 (3.5mm) screws

  9. CItmpVqENbfchsuU

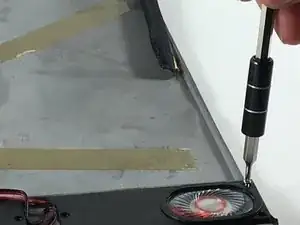

    • Use the Phillips 00 screwdriver head to unscrew the screws to the fan.

    • Reminder: There should be 4 (1 mm) screws for the fan.

    • Note: From here, you can simply lift and remove the motherboard from the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
