Le Pan S Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

5 - 8 Minuten

Einleitung

If the images taken are black or not displayed at all, it may be time to replace the camera. Replacing the camera is a moderately easy task, and the step-by-step disassembly is listed below. No out-of-the-ordinary tools will be required for this guide.

  1. rExOwV5xuYVqCiRo

    • Remove the two 3.5 mm Phillips #00 screws that are covered by the micro SD port.

    • This cover is adjacent to the volume button on the side of the Le Pan S.

  2. 1hA2tVClhf35baio
    1hA2tVClhf35baio
    NVriU1cZiB2CTT1N

    • Insert the spudger between the front and back panel in order to pry them apart.

    • Do this beside the volume button and the micro SD cover.

    • Pry open the rest of the Le Pan S by dragging the spudger across the side.

  3. nouVIZunSHRscNLW

    • Once the front and back faces are completely separated, remove the back cover to reveal the inside components.

  4. 3PsyxkXGRYvTVNjv
    3PsyxkXGRYvTVNjv
    pZeHo2k4TGLQNnfL

    • Disconnect the battery from the circuitry and lay it out of the way.

    • The best method to complete this is to pull the bundled cable connector out with your hands. Pull towards the wires and away from the electrical board. Use the spudger to further coax the cable out.

    • If you are replacing your battery, make sure to dispose of it properly.

    What is the replacement battery to get? Model,type, anything would help..

    Bg70 -

    what is a spudger? Where do you get it? Are replacement batteries still available somewhere?

    BETH SCHRECK -

  5. LNX1nrqRPenrvWty

    • Remove the four 3.5 mm Phillips #00 screws from the circuit board near the bottom of the tablet.

  6. 3HjSKIcB1GF2wwcv

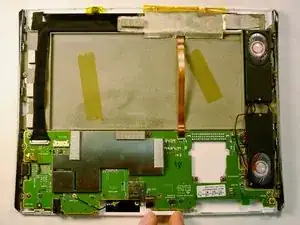

    • Lift and pull the volume rocker up so it is out of the way of the camera.

  7. gxGkJfR3ebZ2aavp
    gxGkJfR3ebZ2aavp
    qdmnqSsmIYLlsotF

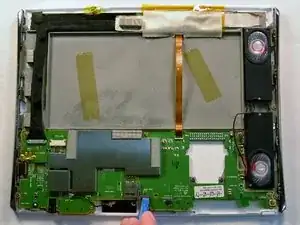

    • Remove the zero insertion force connector (ZIF) by using a plastic opening tool, spudger, or fingernail to lift retaining flap.

  8. PLBEamsYmYLRkICH
    PLBEamsYmYLRkICH
    Y5Tw3ZxFawl3eYpW

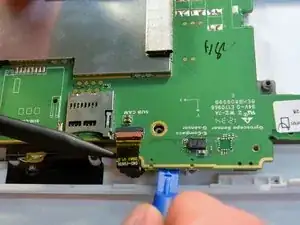

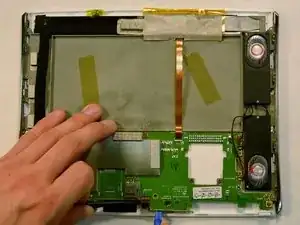

    • Slightly lift up the green electrical board and pull out the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
