Le Pan S Volume Rocker Replacement

Geschrieben von: Wiaam Elkhatib
  • Kommentare: 2
Le Pan S Volume Rocker Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

First, check to see if the volume is turned up to a reasonable level by using both the volume rocker on the side of the device and the digital volume bar in the settings menu. If the troubleshooting has not solved the issue, the volume rocker will need to be replaced in a few simple steps. Minimal tools will be needed for this guide.

  1. rExOwV5xuYVqCiRo

    • Remove the two 3.5 mm Phillips #00 screws that are covered by the micro SD port.

    • This cover is adjacent to the volume button on the side of the Le Pan S.

  2. 1hA2tVClhf35baio
    1hA2tVClhf35baio
    NVriU1cZiB2CTT1N

    • Insert the spudger between the front and back panel in order to pry them apart.

    • Do this beside the volume button and the micro SD cover.

    • Pry open the rest of the Le Pan S by dragging the spudger across the side.

  3. nouVIZunSHRscNLW

    • Once the front and back faces are completely separated, remove the back cover to reveal the inside components.

  4. 3PsyxkXGRYvTVNjv
    3PsyxkXGRYvTVNjv
    pZeHo2k4TGLQNnfL

    • Disconnect the battery from the circuitry and lay it out of the way.

    • The best method to complete this is to pull the bundled cable connector out with your hands. Pull towards the wires and away from the electrical board. Use the spudger to further coax the cable out.

    • If you are replacing your battery, make sure to dispose of it properly.

    What is the replacement battery to get? Model,type, anything would help..

    Bg70 -

    what is a spudger? Where do you get it? Are replacement batteries still available somewhere?

    BETH SCHRECK -

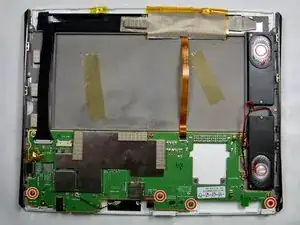

  5. qEJG1QSmjQVccNEQ

    • Remove the four 2.5 mm Phillips #00 head screws from the circuit board near the top of the tablet.

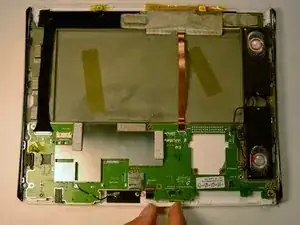

  6. EsWcAGR1tD1Mh1IJ

    • Pull out the volume rocker by carefully moving it side to side with your fingers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
