Einleitung

If there is no sound coming from your device there is a good chance your speakers are broken. This guide will show you how to replace the speakers in the Leader Impression i10A-LE tablet.

  1. rdnXRj22l2V25XZZ

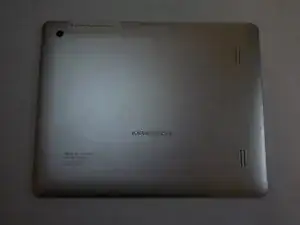

    • Start with your Leader Impression i10A-LE with the word "Impression" closest to you and the camera in the top left corner.

  2. JZsEJ1A4Tv2GnRhV
    JZsEJ1A4Tv2GnRhV
    fPLIJvG6LvYdor6i
    KcaqIIkLLQ5WGOJH

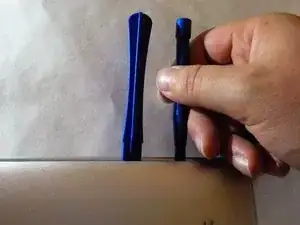

    • Start by prying the back off by using plastic opening tools

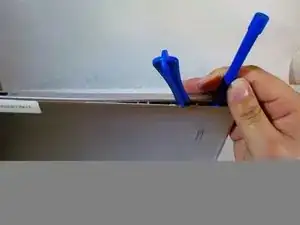

    • Using the plastic tools slide the flat end into the device.

    • Gently pry the back piece until you hear a popping noise.

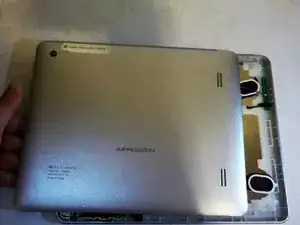

    • Once the back is loose, remove it from the device and set aside.

  3. miKUWkVUv55rslNe
    miKUWkVUv55rslNe
    oMXpFT5UF3WNAb3p
    QTuDYPAxQPOUcPXd

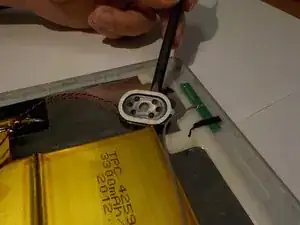

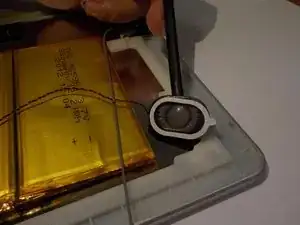

    • Use the spudger to pry both of the speakers from the tablet.

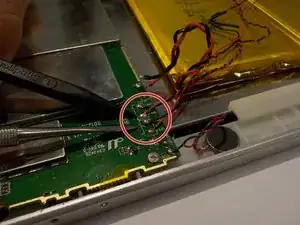

    • Follow both sets of speaker wires to the motherboard where they are connected.

    • Desolder the wire connections from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
