LeapFrog LeapPad Platinum Screen Replacement

Geschrieben von: David Lee
  • Kommentare: 5
LeapFrog LeapPad Platinum Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

30 - 40 Minuten

Einleitung

Use this guide to remove all of the electrical components inside your LeapPad Platinum tablet and then replace the touch screen.

  1. 3JRufJYqFJ1SIW5M

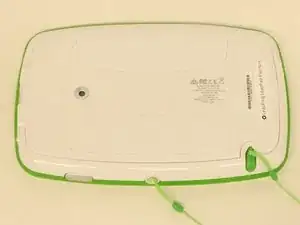

    • Place your tablet on a flat surface with the screen facing down.

    many thanks for this, but can you tell me where to buy a replacement screen please?

    Helen -

  2. cDxahTRiiRwCTpFn
    cDxahTRiiRwCTpFn
    ES3lPhRllhExGGbm

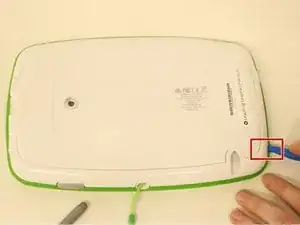

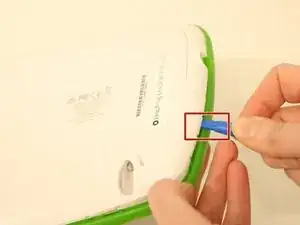

    • Using a plastic opening tool, pry off the plastic border by inserting it in the space between the green bumper and the white plastic on the edge of the tablet.

    • The border snaps into place, so don't be too worried if you hear a cracking noise while prying it off.

  3. oLgFZWaKwCdCNLJb
    oLgFZWaKwCdCNLJb
    vWujn1kTPZwQn2Bp

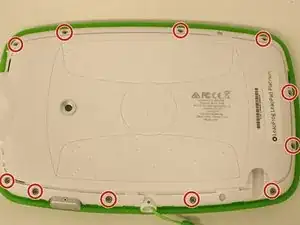

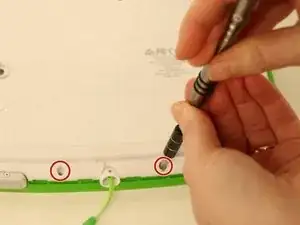

    • Remove the 11 Phillips screws (8.0 mm) located around the edge of the back cover with a Phillips screwdriver.

  4. y6lOmWkVy5K35WRp

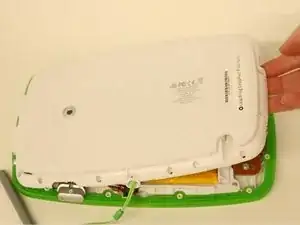

    • Pull the back cover off of your device.

  5. 4fKIEEHIVUyAWBiT
    4fKIEEHIVUyAWBiT
    GOsiR1Hn1GMNPG3i
    DHXIhiXaOICxLlBH

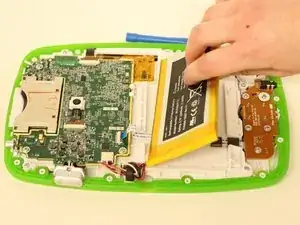

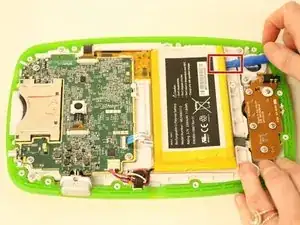

    • Wedge a plastic opening tool underneath the battery and lift the battery up.

    • The battery is held in place by an adhesive strip, so it can be difficult to pry off.

    How do you get that little black loop that the battery wires are wrapped in, out? Does it just pop out? I’m afraid to pull to hard

    Casey Payton -

  6. jdByPnRFYPbGl3J4

    • The battery has red, black, and white wires that are all connected to the motherboard through a plastic clip. Unplug this plastic clip to fully remove the battery from your device.

  7. NSLlLIhKqUI24DPi
    NSLlLIhKqUI24DPi
    QbrU2dqYohZucBTB

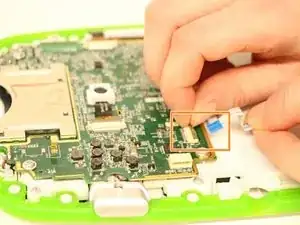

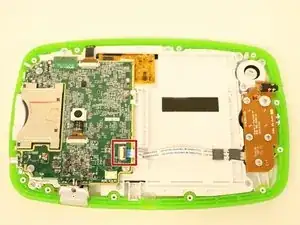

    • Locate the white ribbon cable connected to the motherboard.

    • Disconnect the cable by flipping up the metal tab on the connector and sliding the cable out.

  8. viGNdVfVU1SKfDG3
    viGNdVfVU1SKfDG3
    ta4PxjvGpIE32McX

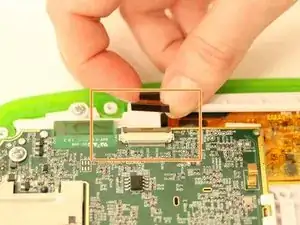

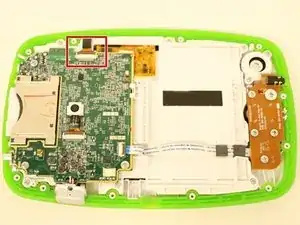

    • Locate the black ribbon cable which is connected to the motherboard.

    • Disconnect the cable by flipping up the metal tab on the connector and sliding the cable out.

  9. wBr5MXpDKRTNnZLQ
    wBr5MXpDKRTNnZLQ
    W5ixRsZqjmqZDGuG

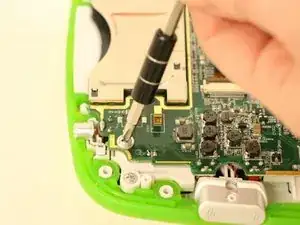

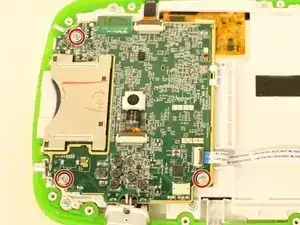

    • Remove the three 4.0 mm Phillips screws located in the corners of the motherboard.

  10. VCX12AIt2yPCX4gZ

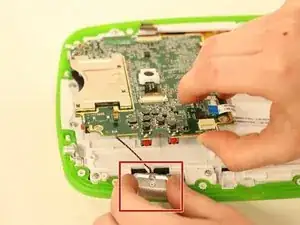

    • Lift up the front edge of the motherboard.

    • Lift the volume-control button out of the device and set it aside.

  11. FblSfXBWLJ46K4mZ

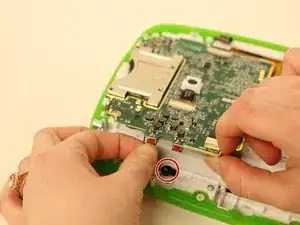

    • Gently tug upwards on the red and black twisted wires located near the button you just removed to release the black rubber base they are connected to from the device.

    • This does not take much force, so it is likely that this piece will pop out of place when initially lifting the motherboard.

  12. s1J1fYHdiJIOE1UX
    s1J1fYHdiJIOE1UX
    RJECbsAMHGGAZUGG

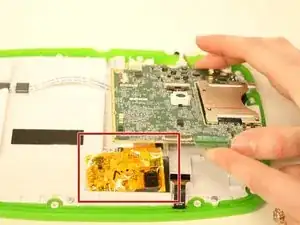

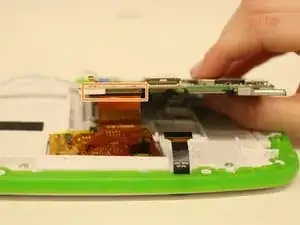

    • Rotate your device 180 degrees so the the motherboard is on your right-hand side and gently lift the front edge of the motherboard to reveal an orange sheet of plastic.

    • Disconnect the orange sheet from the motherboard by lifting the metal tab on the connector (as you did for the cables in steps 1 and 2), and lift the motherboard completely out of the device.

  13. 3MUXGgao3qegAM2x
    3MUXGgao3qegAM2x
    qb2kOZ3NZplXPjZZ

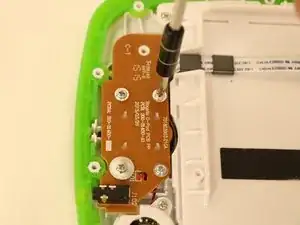

    • Remove the brown speaker board located on the left side of the LeapPad by removing the following screws holding it in place:

    • Four 3.0mm Phillips screws

    • One 7.0mm Phillips screw

  14. RK3HLES2XRthcXhs
    RK3HLES2XRthcXhs
    kID3pZRAyRF6KEWa

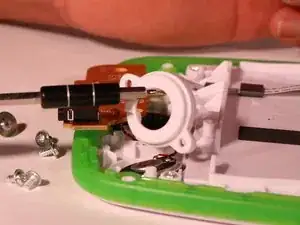

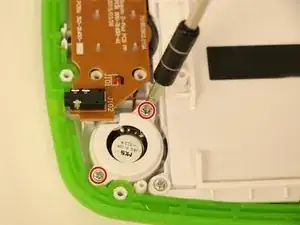

    • Locate the circular plastic speaker cover, remove the two 5.0mm Phillips screws holding it in place, and gently lift the cover away from the device.

  15. vtFGqJpCHGKNReSJ

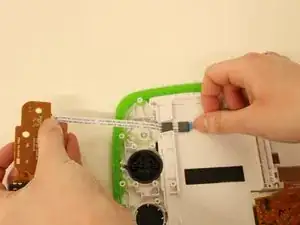

    • Lift up the speaker board and locate the white ribbon attached to its underside.

    • Fully remove the speaker board from the device by gently pulling the ribbon cables out of the slot.

    • Be gentle when working with the ribbon as it can be damaged easily.

    • Tweezers or a pointed plastic spudger will help guide the ribbon back through the black tabs when reassembling your device.

  16. ZQDEAYRHHBDpBt1B

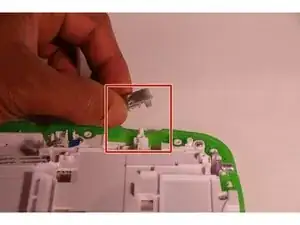

    • Remove the power and the volume buttons from their cradles.

    • This does not require any tool, just lift them out and put them in a secure place.

  17. OTE5TPdvhBBye3FY
    OTE5TPdvhBBye3FY
    SEltTb2ZZhucOxQP

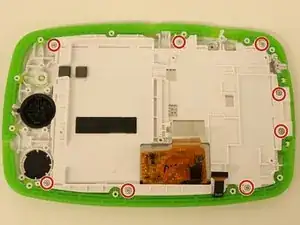

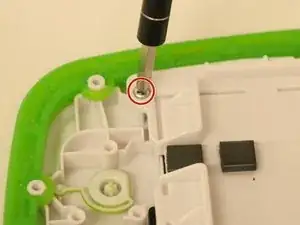

    • Remove the eight 4.0 mm screws for the plastic backing that covers the screen.

    • Be certain to keep track of your screws.

    • The directional pad is now loose and can also be removed.

  18. 6reRnjnMcKMaGHuA
    6reRnjnMcKMaGHuA
    YSOmiGGPJfoo2gvv

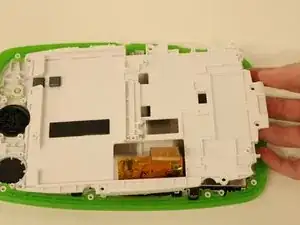

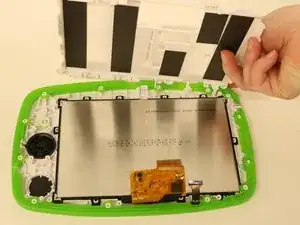

    • Carefully lift out the plastic plate and set it aside.

  19. wxWOpULYqEvp6XUU
    wxWOpULYqEvp6XUU
    t1oSrU5gRWMoA6E4

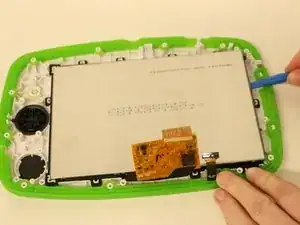

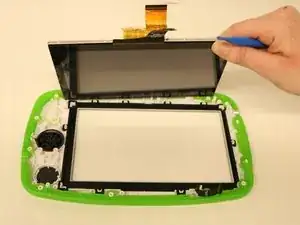

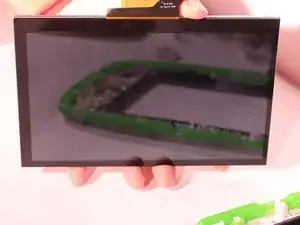

    • The screen is now completely accessible and can be lifted out of its cradle. Use the plastic spudger to safely and carefully lift the screen up.

    • Screens are very fragile so be sure to have a safe and secure place to put it, safely away from any magnetic devices.

    Hi there i got screen damage on this model did you know any part number or place where can buy replacment ? Wojciech.kuczaj@gmail.com

    Wojciech Kuczaj -

Abschluss

To reassemble your device, follow these instructions in reverse order.
