LeapFrog LeapPad Ultimate Camera Replacement

Geschrieben von: Nabil Mustafa
  • Kommentare: 0
LeapFrog LeapPad Ultimate Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

A guide on how to replace the camera in a LeapFrog LeapPad Ultimate.

  1. ZRZfWSJEfhKHXauD
    ZRZfWSJEfhKHXauD
    aCbHX1EqJE4rkIT6

    • Flip over the Pad to its back side to begin the removal of the back panel.

    • Begin by removing the blue rim along the edge of the device. It runs along the green silicone lining.

    • This is very difficult to remove , so do be patient. To help remove the seal, both a metal spudger and plastic opening tool may be used.

    • Remove the pen from its place before starting to avoid tangling.

  2. cGB1HVYTLkvFyRWG
    cGB1HVYTLkvFyRWG
    EXGFG2AnpMVTNjhP

    • Once the blue rim is removed, the 12 screws will be visible.

    • Use the Phillips #1 screwdriver to unscrew all 12 screws.

  3. yH1tYyOSCTIlJdci

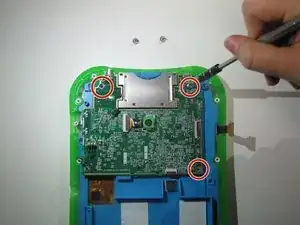

    • Remove the 3 screws on each corner of the motherboard

  4. 1Qmwmv5DlDmcS3Av
    1Qmwmv5DlDmcS3Av
    OeLKeHSKReYOclhX
    O3J1vJtrVAWZ3IJ3

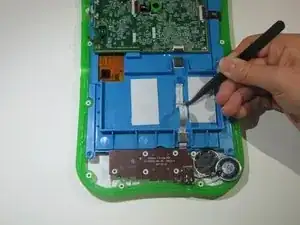

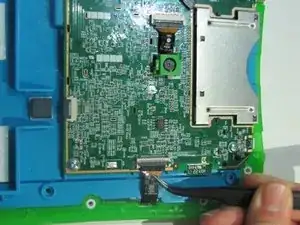

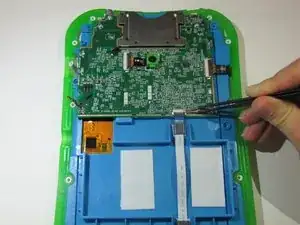

    • Remove the ribbon on the bottom of the motherboard and the ribbon on the left side of the motherboard.

    • There will be a small black switch on top of the ribbons that you must flip to take them out.

  5. PsHEm2SDTPGtOJRn

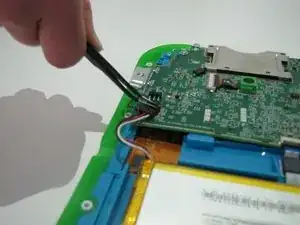

    • Remove the 3-pin connector on the top left side of the motherboard.

  6. ho23OHm3AuHnHDBp
    ho23OHm3AuHnHDBp
    yW4jtpGlZVlZSKwr

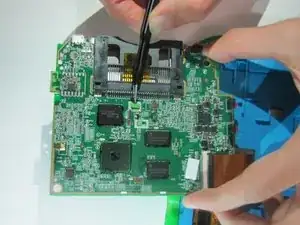

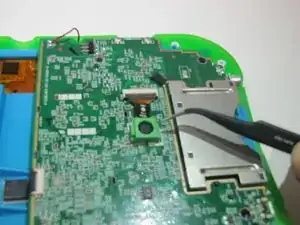

    • Flip the motherboard to its back side and pinch the 2 green hooks to remove the camera cover

  7. yDxHQpGDEPCfnbf6

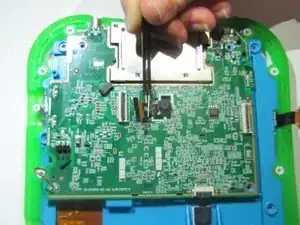

    • Remove the ribbon connecting the camera to the motherboard. You have now taken out the camera and can replace it with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
