Einleitung
To replace the battery is a mild task to get to and can take up to 15 minutes to complete. A far warning, patience is key because the device itself is difficult to open . The only tools that will be needed will be a screwdriver and some tweezers .
-
-
Flip over the Pad to its back side to begin the removal of the back panel.
-

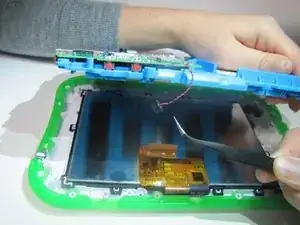

Begin by removing the blue rim along the edge of the device. It runs along the green silicone lining.
-
-
-
Once the blue rim is removed, the 12 screws will be visible.
-
Use the Phillips #1 screwdriver to unscrew all 12 screws.
-
-
-

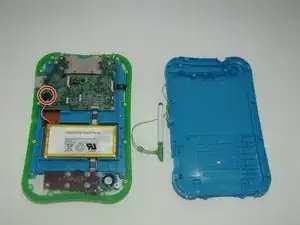

Begin with the removal of the battery from its place.
-

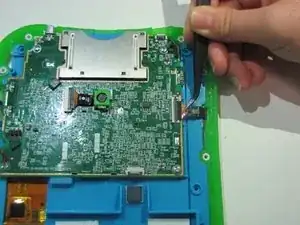

Flip the black switch that is connecting the battery to the motherboard.
-

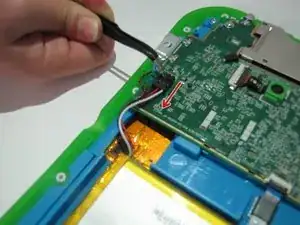

Then pull gently and should disconnect.
-
-
-

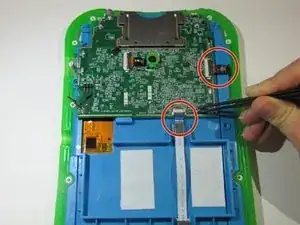

Remove the black and white ribbon structures from the side of the motherboard.
-

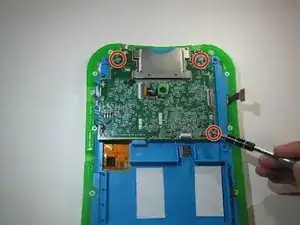

Next, remove the three screws along the corners of the motherboard using the Phillips # 1 screwdriver.
-
-
-

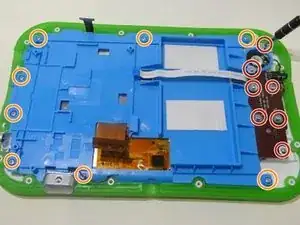

Use a Phillips #1 screwdriver to unscrew the 7 screws from the speaker with the bronze plate sound board.
-
Unscrew the 8 screws from the blue sub-panel.
-
-
-
Take off the sub-panel exposing the motherboard.
-
Flip the motherboard on its back side and flip the switch to remove the wide orange ribbon and pull the twisted black and white wires from its place.
-
To reassemble your device, follow these instructions in reverse order.
