LeapFrog Scribble and Write Motherboard Replacement

Geschrieben von: Shang
  • Kommentare: 0
LeapFrog Scribble and Write Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

Keine Schätzung

Einleitung

In this guide, you will learn how to replace a LeapFrog Scribble and Write motherboard. You will need a soldering iron to remove certain wiring from the motherboard.

  1. oEeUOLswF6BeQdEP

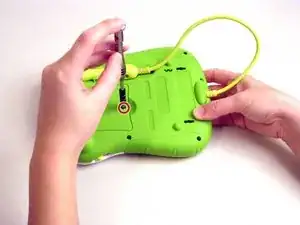

    • Use a Phillips head screwdriver to remove the screw from the battery compartment on the back of the toy.

  2. GHOnwW34GCPADdCH

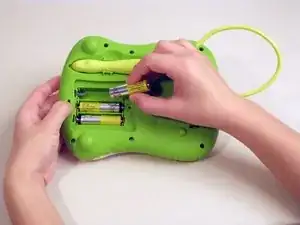

    • Remove the back battery cover and all of the batteries.

  3. lvtyJFrfBt5Wj3oo

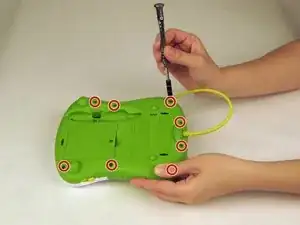

    • Use a Phillips screwdriver to remove the nine case screws from the back of the toy.

    • Be careful to keep track of the screws.

  4. gLYAiOWAQFcJHvEG

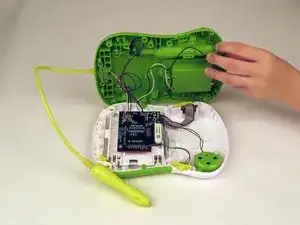

    • Remove the back cover from your toy.

  5. aVXEvtSLjwoPiGAs

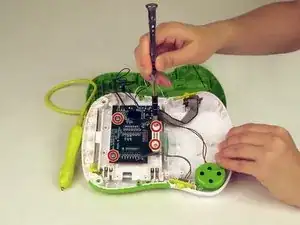

    • Using a Phillips screwdriver, remove the four screws from the motherboard.

  6. FqCvlNTZImfkQcGX

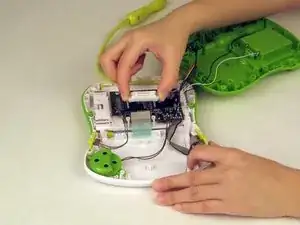

    • Remove the keyboard ribbon from the motherboard.

  7. TekRZXSMRnahinHI

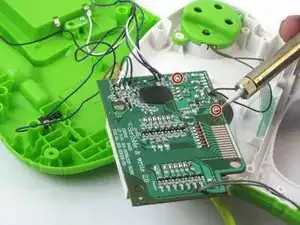

    • Remove the speaker wires from the motherboard with your soldering iron.

  8. jp5OEFPyHOPKIeAi

    • Remove the battery wires from the motherboard with the soldering iron.

  9. yW2HTjrIxntt2LAy

    • Remove the switch wires from the motherboard with the soldering iron.

  10. 2WG3jyMlNep6morn

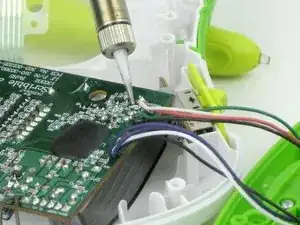

    • Remove the pen wires from the motherboard with the soldering iron.

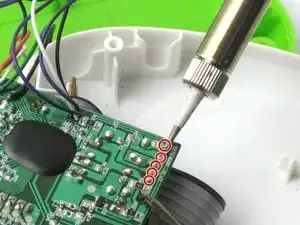

  11. q1OvoAYPm5YTvNHy

    • Remove the volume control switch from the motherboard with the soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
