Leapfrog My Own Leaptop Speaker Replacement Guide

Geschrieben von: Jonathan Fitzer

Kommentare: 12

Leapfrog My Own Leaptop Speaker Replacement Guide

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will show the user how to access and clean or replace the speaker in the Leapfrog My Own Leaptop.

Werkzeuge

Schritt 1

Flip over device so that back portion of the device is facing you.

Schritt 2

Unscrew the one 10mm screw that holds the battery cover in place with a a PH1 phillips head screwdriver.
Please note that the screw cannot be removed as it is attached to the battery cover.

PH2 works better.

me262 -

Schritt 3

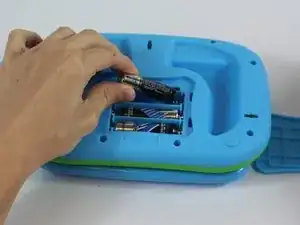

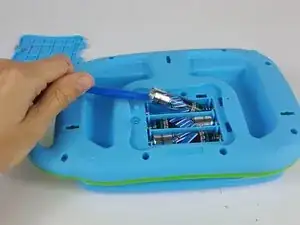

Carefully pry the batteries out with a plastic opening tool prying from the non spring side.
Remove the three AA batteries.
Note the direction of the batteries for when reassembling.

Schritt 4

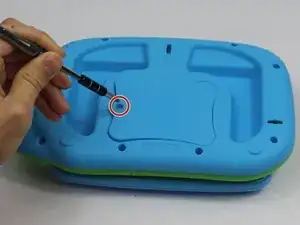

Remove the eleven 10mm screws from the back of the device with a a PH1 phillips head screwdriver.

PH2 works better.

me262 -

Schritt 5

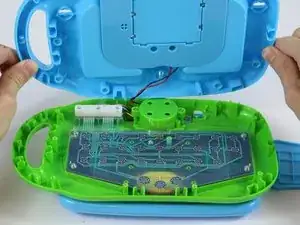

Carefully remove back of the device.
Make sure not to rip the wires when lifting the cover off.

Schritt 6

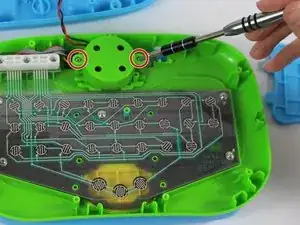

Unscrew the two 7.5 mm screws to the left and right of the speaker with a PH1 phillips head screwdriver.

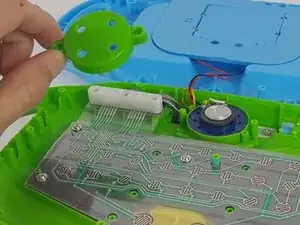

Remove the cover and place to the side.

Schritt 7

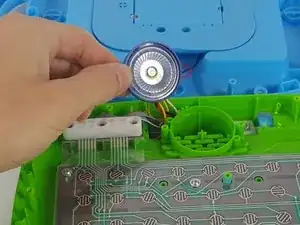

Once the cover is removed, gently lift up the speaker making sure not to rip or break the wires.
If you are disassembling the device to clean the speaker, clean it at this point with a soft, lightly dampened cloth.
Gently turn the speaker over and carefully desolder the white and yellow wires from the speaker.

What do you do when you "disolder" the cables?

Iris T - 07/07/17

What do you do if the yellow wire is already broken off the silver part? How do you reapply it?

Erika Mata - 20/05/19

Our white wire is halfway off, so I’m wondering if it can be soldered back on

Carissa holland - 20/05/19

Speaker measurements (measured with digital caliper):

0.25 W / 16 ohm / 35.5mm diameter (anything smaller will work, but will rattle around)

Yellow wire to leftmost solder point, White wire to rightmost solder point.

Embossed on speaker: 16ohm / M-0.25W / CPC

me262 -

Also remember to back out the screws to where you hear a “click” before screwing them in (this finds the previous threads so you won’t make new threads in the screwposts).

me262 -
