Leitz iLam Home Office A4 Disassembly

Geschrieben von: Klemen Hodžić
  • Kommentare: 0
Leitz iLam Home Office A4 Disassembly

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

50 Minuten

Einleitung

  1. KgH64tYNOC4c5aQ4
    KgH64tYNOC4c5aQ4
    TYCkDxiIS3qUKYtE
    MmvBFvHrbNRabltl

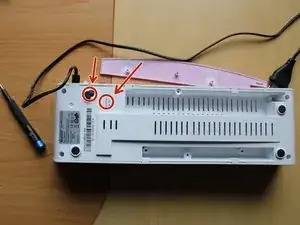

    • Turn over the device and unmount 11 screws from the bottom.

    • Eight screws are well seen.

    • Two screws are hidden.

  2. u2yTWZfmWeFykSvd
    u2yTWZfmWeFykSvd
    NhCHewJyUPbqR3JM
    rvVyHwQLiJ3xvH5c

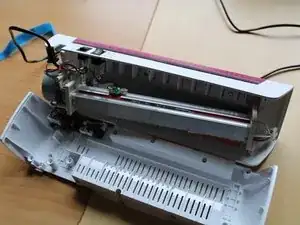

    • Carefully open the housing.

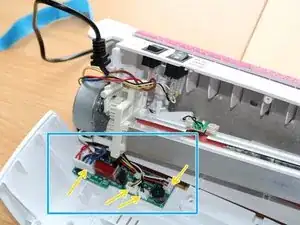

    • Disconnect the connectors.

  3. AcrWSKE6EMXRhTkF
    AcrWSKE6EMXRhTkF
    m2CaoJ3hiq2PUPkV
    Z4rjdlajKxUhlpDk

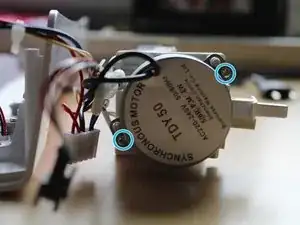

    • Remove two screws.

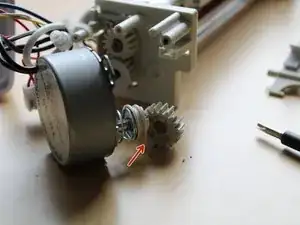

    • Be careful on small parts that fall down one's you unscrew the screws.

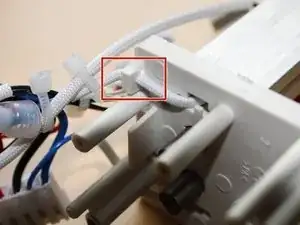

    • Carefully release cable from tiny holder.

  4. ELAbsVQjPg5w1U1b
    ELAbsVQjPg5w1U1b
    6kGPKMhipArvmQRG
    XCFmAjM3cAafoNsd

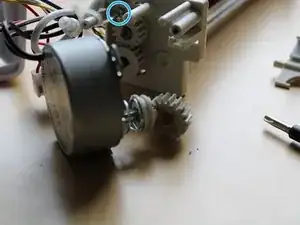

    • Unscrew the elements from pictures and you'll be able to slide out the red cylinders.

Abschluss

To reassemble your device, follow these instructions in reverse order.
