This guide will show the steps needed to take out and replace the motherboard in the Lenovo Chromebook 100e 2nd gen. This repair is a last ditch effort to fix your broken device; only do this repair if there is significant water or structural damage to the device causing complete graphical and functional failure.

  1. gB5IPFqDRh1sOtp2
    • Remove the nine 6 mm screws from the back of the laptop using a Phillips #0 screwdriver.

  2. yoGCFDWx2qPYUHAT
    yoGCFDWx2qPYUHAT
    bZBTyGCPji6OHZts
    • Open the laptop and lay it flat.

    • Go along the edge of the keyboard with an opening tool until it pops loose.

    • Potential for device damage: Make sure that the keyboard does not fall away from the laptop, as it is still connected to the internal components

  3. wS41n6yJY1hp4GcW
    wS41n6yJY1hp4GcW
    vEBiK2JuKBC2vMJm
    • Lift the keyboard connectors up using an opening pick.

    • Remove the connectors from their sockets.

  4. PtjAvIunGsd1UoCy
    • Remove the four 4 mm Phillips #0 screws holding the battery in.

  5. cxbmPUSUOadq6OSM
    • Using an opening pick, push on the connection where the wires are connected to the motherboard.

    • Potential for device damage: This step takes some force to disconnect, but be careful to not pull the wires out of the battery.

  6. vG5YjWivhRCFcT6A
    • The battery is now loose and can be removed from the laptop.

  7. Rnw2JSNULUPEZJXx
    • Using a spudger, go along the edge of the screen and pop the connections between the cover and the back side out.

  8. gGjerS1aBMFQvxpq
    • Insert the spudger into the gap between the hinges and pull up to detach the connections.

  9. piEcXgLyZyPSoJeZ
    • Remove the screen bezel from the laptop.

  10. 2BWMGdUrYy5NWcOm
    • Remove the four 3.4 mm screws holding the screen in place using the Phillips #00 screwdriver.

  11. eV5UxfFa4jkDdZJb
    • Carefully pull the screen back onto the lower assembly.

  12. V5NdNv3CPWrgcVEF
    V5NdNv3CPWrgcVEF
    5RGmWT2OX1Ne1anB
    eIVY3QJRDNeepxad
    • Peel back the protective tape over the display cable using the spudger.

    • Gently lift the black bar latch holding the cable in place, until the cable becomes loose.

    • Pull the cable free and remove the display.

    • DO NOT pull on the cable before lifting the bar latch or the cable will break.

  13. 6AQZkPHnKlaKCLAa
    6AQZkPHnKlaKCLAa
    4NolRFAqB5NcwXm3
    ytgmi2yswxIdGLj6

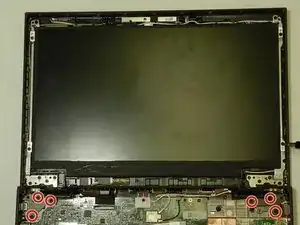

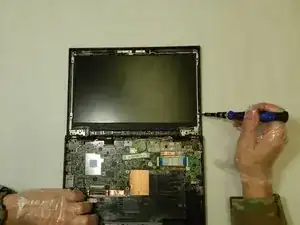

    • Use the Phillips #0 screwdriver to remove the six 4.7 mm screws located on the bottom half of each hinge.

    • Use the Phillips #00 screwdriver to remove the ten 3.4 mm screws located on the upper hinge assembly.

  14. KmiPUsOyRtsSNE4Q

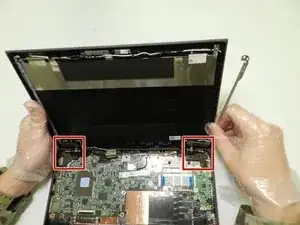

    • Move the screen assembly perpendicular to the keyboard assembly.

    • Remove the hinges by pulling straight up.

  15. eYyRrt6aSckeNQgc
    eYyRrt6aSckeNQgc
    GlxyAtmFQhYlQORa

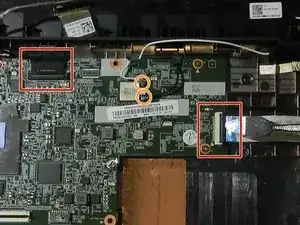

    • Use the spudger to disconnect the two ribbon cables.

    • Disconnect the black and white coaxial cables.

  16. 2uT4UxVtMNisdMX3
    2uT4UxVtMNisdMX3
    sVwBQwlwaGPLNoO1

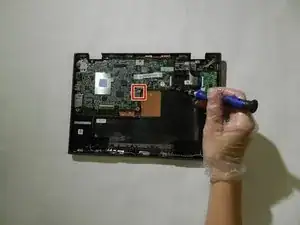

    • Remove the white Lenovo sticker over one of the screws.

    • This screw conducts electricity. Remember to replace this sticker upon reassembly to avoid shorts.

    • Use the Phillips #0 screwdriver to remove the seven 3.8 mm screws.

  17. L3MTbu4fPC3SvJnb

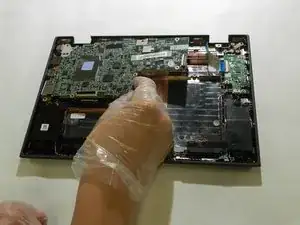

    • Slide the motherboard up and out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
