Lenovo 100e Chromebook 2nd Gen Speakers Replacement

Geschrieben von: Pup Washington
  • Kommentare: 0
Lenovo 100e Chromebook 2nd Gen Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide will show the steps needed to take out and replace the speakers in the Lenovo Chromebook 100e 2nd gen. The tools required for this guide are a Phillips head screwdriver and a plastic pick.

  1. gB5IPFqDRh1sOtp2

    • Remove the nine 6 mm screws from the back of the laptop using a Phillips #0 screwdriver.

  2. yoGCFDWx2qPYUHAT
    yoGCFDWx2qPYUHAT
    bZBTyGCPji6OHZts

    • Open the laptop and lay it flat.

    • Go along the edge of the keyboard with an opening tool until it pops loose.

    • Potential for device damage: Make sure that the keyboard does not fall away from the laptop, as it is still connected to the internal components

  3. wS41n6yJY1hp4GcW
    wS41n6yJY1hp4GcW
    vEBiK2JuKBC2vMJm

    • Lift the keyboard connectors up using an opening pick.

    • Remove the connectors from their sockets.

  4. R6swSRBm4ddFHOTy

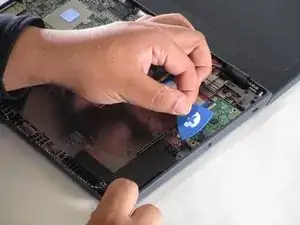

    • Using an opening pick, disconnect the speakers from the headphone jack.

  5. lQc1vhAsBZXgGiUq

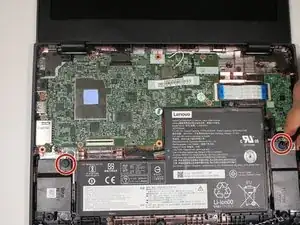

    • Remove the two 2 mm Phillips #0 screws holding both of the speakers in.

  6. epHncLC5ZqyH2oDR

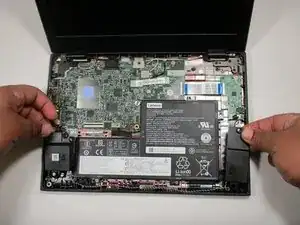

    • The speakers are now loose and can be removed from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
