Lenovo 100e Chromebook 2nd Gen Trackpad Replacement

Geschrieben von: Pup Washington
  • Kommentare: 0
Lenovo 100e Chromebook 2nd Gen Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

This guide will show the steps needed to take out and replace the trackpad in the Lenovo Chromebook 100e 2nd gen. The only tool required for this guide is a Phillips head screwdriver. Make sure to be careful when pushing on the trackpad in step #2 to ensure the connections do not break.

  1. gB5IPFqDRh1sOtp2

    • Remove the nine 6 mm screws from the back of the laptop using a Phillips #0 screwdriver.

  2. yoGCFDWx2qPYUHAT
    yoGCFDWx2qPYUHAT
    bZBTyGCPji6OHZts

    • Open the laptop and lay it flat.

    • Go along the edge of the keyboard with an opening tool until it pops loose.

    • Potential for device damage: Make sure that the keyboard does not fall away from the laptop, as it is still connected to the internal components

  3. wS41n6yJY1hp4GcW
    wS41n6yJY1hp4GcW
    vEBiK2JuKBC2vMJm

    • Lift the keyboard connectors up using an opening pick.

    • Remove the connectors from their sockets.

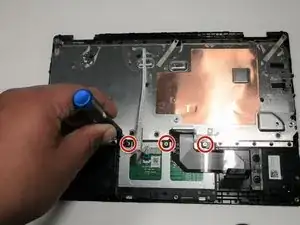

  4. 6Q5X6CsKLpjplZCW

    • Remove the three 2 mm Phillips #00 screws holding the trackpad in.

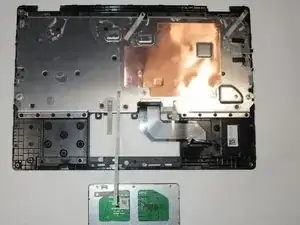

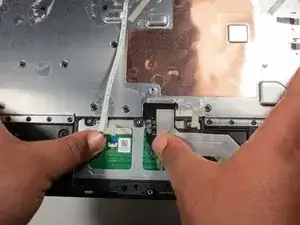

  5. UPD1wpATmZnPFLol
    UPD1wpATmZnPFLol
    iMBCuQMHbsMkWKJi

    • Push up on the side of the trackpad that faces the screen.

    • Pop the trackpad out and remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
